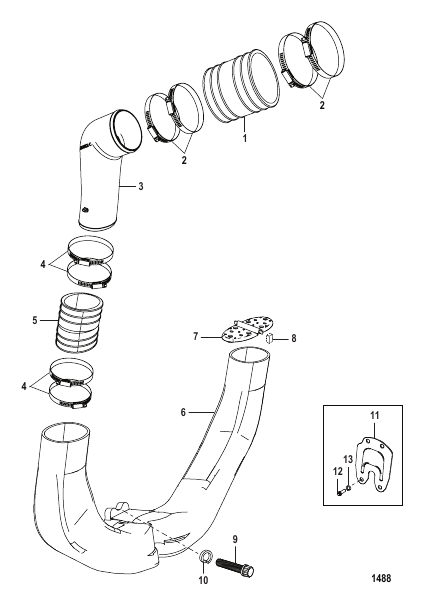

Exhaust System Components
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 44348001 |
ТРУБА Выхлоп (Standard) TUBE Exhaust (Standard) |
2 | superseded |
| 10 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
4 | |
| 11 | 861776A2 |
КОМПЛЕКТ ПЛАСТИН (Through Transom Exhaust) PLATE KIT (Through Transom Exhaust) |
1 | |
| 12 | 8M0113180 |
ВИНТ (0.375-16 x 1.00) (Through Transom Exhaust) SCREW (.375-16 x 1.00) (Through Transom Exhaust) |
4 | |
| 13 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) (Through Transom Exhaust) LOCKWASHER (.375) (Through Transom Exhaust) |
4 | |
| 2 | 815504272 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 3 | 11086T |
КОЛЕНЧАТЫЙ Exhaust, Port (Without Risers) ELBOW Exhaust, Port (Without Risers) |
1 | |
| 3 | 14343T |
КОЛЕНЧАТЫЙ Exhaust, Starboard (Without Risers) ELBOW Exhaust, Starboard (Without Risers) |
1 | |
| 3 | 14801A1 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Exhaust (Use with 3 Inch and 6 Inch Riser Kits) ELBOW KIT Exhaust (Use with 3 Inch and 6 Inch Riser Kits) |
1 | |
| 4 | 815504272 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 5 | 14358001 |
ТРУБА Выхлоп TUBE Exhaust |
2 | superseded |
| 6 | 8M0115149 |
ТРУБА Exhaust PIPE Exhaust |
1 | |
| 7 | 807166A1 |
ЗАСЛОНКА В СБОРЕ Вода SHUTTER ASSEMBLY Water |
2 | |
| 8 | 807167 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 9 | 8M0113174 |
ВИНТ (0.375-16 x 1.25) SCREW (.375-16 x 1.25) |
4 | |
| NS | 8M0074364 |
ПРОБКА Hose Clamp COVER Hose Clamp Hose Clamp |
AR |
