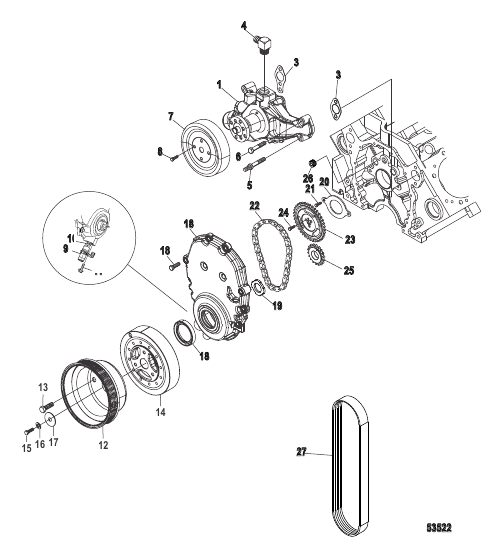

FRONT COVER AND CIRCULATING PUMP
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 8M0113734 |
ВОДЯНОЙ НАСОС В СБОРЕ WATER PUMP ASSEMBLY |
1 | |
| 10 | 885192 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 11 | 884018001 |
ВИНТ SCREW |
1 | |
| 12 | 807730T |
ШКИВ Crankshaft PULLEY Crankshaft |
1 | |
| 13 | 34352 |
ВИНТ (0.375-24 x 0.875) SCREW (.375-24 x .875) |
3 | |
| 14 | 863397 |
ВИБРОГАСИТЕЛЬ HARMONIC BALANCER |
1 | |
| 15 | 8M2021674 |
ВИНТ (0.437-20 x 2.50) SCREW (.437-20 x 2.50) |
1 | |
| 16 | 39131 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 17 | 71458 |
ШАЙБА WASHER |
1 | |
| 18 | 863396001 |
РАСПРЕДЕЛИТЕЛЬНАЯ КРЫШКА В СБОРЕ (Screws, Grommets, Oil Seal, and Gasket Are Not Sold Seperately) TIMING COVER ASSEMBLY (Screws, Grommets, Oil Seal, and Gasket Are Not Sold Seperately) |
1 | superseded |
| 19 | 863398 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА RELUCTOR WHEEL |
1 | |
| 20 | 845941 |
ФИКСАТОР Camshaft RETAINER Camshaft |
1 | |
| 21 | 845943 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 22 | 17161T |
ЦЕПЬ Timing CHAIN Timing |
1 | superseded |
| 23 | 8116591 |
ЗВЕЗДОЧКА Camshaft SPROCKET Camshaft |
1 | |
| 24 | 8M0043993 |
ВИНТ (0.312-18 x 0.75) SCREW (.312-18 x.75) |
3 | |
| 25 | 17160 |
ЗВЕЗДОЧКА Crankshaft SPROCKET Crankshaft |
1 | superseded |
| 26 | 816565 |
ПРОБКА Колпачок (0.468) Pipe PLUG Cup (.468) Pipe |
1 | |
| 27 | 865615Q10 |
РЕМЕНЬ Поликлиновый BELT Serpentine |
1 | |
| 3 | 34897 |
ПРОКЛАДКА Water Pump GASKET Water Pump |
2 | |
| 4 | 860346 |
ФИТИНГ Коленчатый патрубок (90 градусов) (0.750) FITTING Elbow (90 Degree) (.750) |
1 | |
| 5 | 8M0076418 |
ШПИЛЬКА STUD |
2 | |
| 6 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 6 | 47688 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
1 | |
| 7 | 865047T |
ШКИВ Water Pump PULLEY Water Pump |
1 | |
| 8 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
4 | |
| 9 | 864297T01 |
ДАТЧИК В СБОРЕ Crankshaft Position SENSOR ASSEMBLY Crankshaft Position |
1 |
