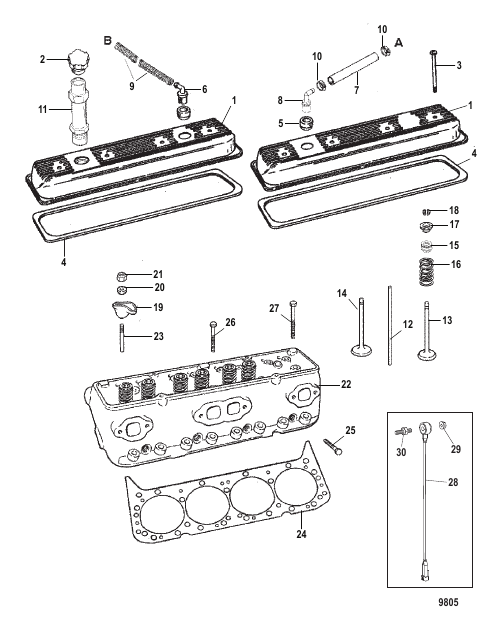

Cylinder Head and Rocker Cover
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 863661R5 |
ЛОНГ-БЛОК В СБОРЕ Reman (350 MAG-MPI) LONGBLOCK ASSEMBLY Reman (350 MAG-MPI) |
1 | discontinued |
| - | 8M0092946 |
ВОССТ. УЗЕЛ ДВИГАТЕЛЯ Quicksilver Crate Engine REMAN ENGINE ASSEMBLY Quicksilver Crate Engine |
1 | superseded |
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 809995 |
КРЫШКА Коромысло With Oil Fill Hole COVER Rocker With Oil Fill Hole |
1 | |
| 1 | 809996 |
КРЫШКА Коромысло Without Oil Fill Hole COVER Rocker Without Oil Fill Hole |
1 | discontinued |
| 10 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) CLAMP Worm Gear (11-18 mm) |
2 | superseded |
| 11 | 807688T |
ТРУБА Oil Fill TUBE Oil Fill |
1 | |
| 12 | 173391 |
ШТОК ТОЛКАТЕЛЯ PUSH ROD |
16 | |
| 13 | 8M0146077 |
ВЫПУСКНОЙ КЛАПАН Standard (Black X Composite) EXHAUST VALVE Standard (Black X Composite) |
8 | |
| 14 | 8M0146076 |
ВПУСКНОЙ КЛАПАН Standard (Black X Composite) INTAKE VALVE Standard (Black X Composite) |
8 | |
| 15 | 8M0050563 |
УПЛОТНЕНИЕ Intake SEAL Intake |
8 | |
| 15 | 804507 |
УПЛОТНЕНИЕ Exhaust SEAL Exhaust |
8 | superseded |
| 16 | 483471 |
ПРУЖИНА SPRING |
16 | |
| 17 | 483481 |
ПРОБКА CAP |
16 | |
| 18 | 547971 |
КЛЮЧ KEY |
32 | |
| 19 | 35329 |
КОМПЛЕКТ РЫЧАГА Rocker ARM KIT Rocker |
16 | discontinued |
| 2 | 18710002 |
ПРОБКА Oil Fill CAP Oil Fill |
1 | |
| 20 | 35331 |
ШАРИК Рычаг коромысла BALL Rocker Arm |
16 | discontinued |
| 21 | 8M0241398 |
NUT Rocker Arm NUT Rocker Arm |
16 | |
| 22 | 8M0115138 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ Cylinder Reman Heads (5.7L) CYLINDER HEAD ASSEMBLY Cylinder Reman Heads (5.7L) |
2 | discontinued |
| 23 | 34522 |
ШПИЛЬКА (.003 Oversized) STUD (.003 Oversized) |
AR | |
| 23 | 8M0146092 |
ШПИЛЬКА (Screw-In Rocker) STUD (Screw-In Rocker) |
AR | |
| 24 | 75611001 |
ПРОКЛАДКА GASKET |
2 | |
| 25 | 11968 |
ВИНТ (0.437-14 x 1.750) SCREW (.437-14 x 1.750) |
16 | |
| 26 | 119671 |
ВИНТ (0.437-14 x 3.00) SCREW (.437-14 x 3.00) |
4 | |
| 27 | 11966 |
ВИНТ (0.437-14 x 3.750) SCREW (.437-14 x 3.750) |
14 | |
| 28 | 8M6003194 |
ДАТЧИК В СБОРЕ Детонационное сгорание SENSOR ASSEMBLY Knock |
1 | |
| 29 | 82670912 |
ГАЙКА (0.375-16), нержавеющая сталь NUT (.375-16) Stainless Steel |
11 | |
| 3 | 8M0084557 |
ВИНТ SCREW |
8 | |
| 30 | 863414 |
ШПИЛЬКА Knock Sensor STUD Knock Sensor |
1 | |
| 4 | 17467 |
ПРОКЛАДКА Rocker Cover GASKET Rocker Cover |
2 | superseded |
| 5 | 8M0071559 |
ВТУЛКА BUSHING |
2 | |
| 6 | 97850T |
КОЛЕНЧАТЫЙ 90 градусов ELBOW 90 Degree |
1 | |
| 7 | 8M0062321 |
РУКАВ (Общая длина 33.00") HOSE (33.00 Inches Bulk) |
1 | |
| 8 | 8M2017060 |
КЛАПАН PCV VALVE PCV |
1 | |
| 9 | 8M0086022 |
РУКАВ Breather HOSE Breather |
1 |
