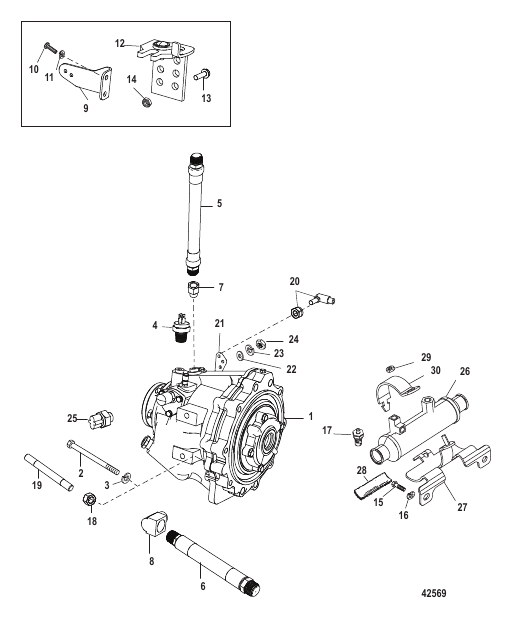

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
896346729 |
TRANSMISSION (71C)(1.0:1)
|
1 |
disc.
|
| 10 |
657461 |
SCREW AND LOCKWASHER (.250-20 x .625)
|
2 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Washer
|
2 |
|
| 12 |
807485T |
BRACKET ASSEMBLY
|
1 |
|
| 13 |
89766 |
SCREW (#10-32 x .620) Stainless Steel
|
2 |
|
| 14 |
826709106 |
NUT (#10-32) Stainless Steel
|
2 |
superseded
|
| 15 |
34353 |
SCREW (.375-16 x 1.00)
|
2 |
|
| 16 |
35048 |
LOCKWASHER (.375)
|
2 |
|
| 17 |
8M6000623 |
SENSOR Water Pressure 50 PSI
|
1 |
superseded
|
| 18 |
22024 |
NUT (.437-14)
|
2 |
|
| 19 |
57921 |
STUD (.437-14/.437-20 x 4.00)
|
2 |
|
| 2 |
60179 |
SCREW (.437-14 x 3.500)
|
6 |
|
| 20 |
807484 |
BALL JOINT ASSEMBLY Quick Release
|
1 |
|
| 21 |
43325 |
LEVER
|
1 |
|
| 22 |
20722 |
WASHER (.328 x .625 x .060)
|
1 |
disc.
|
| 23 |
26993 |
LOCKWASHER (.312)
|
1 |
superseded
|
| 24 |
22053 |
NUT (.312-24)
|
1 |
|
| 25 |
47613 |
SWITCH Neutral Safety
|
1 |
|
| 26 |
863842T02 |
COOLER Transmission Oil (71C)
|
1 |
|
| 27 |
863850 |
BRACKET Cooler
|
1 |
|
| 28 |
772234 |
PAD
|
1 |
disc.
|
| 29 |
8267088 |
NUT (.250-20)
|
1 |
|
| 3 |
32993 |
LOCKWASHER (.437)
|
6 |
|
| 30 |
807445T |
CLAMP Cooler
|
1 |
|
| 4 |
88031 |
SWITCH ASSEMBLY Temperature
|
1 |
|
| 5 |
8054782 |
HOSE (11.50 Inches) Oil (71C)
|
1 |
|
| 6 |
8054781 |
HOSE (19.50) Oil
|
1 |
|
| 7 |
63835 |
ELBOW 45 Degree (71C)
|
1 |
|
| 8 |
47629 |
ELBOW 90 Degree
|
1 |
|
| 9 |
864362 |
BRACKET ASSEMBLY
|
1 |
|
