| # | Part Number | Description | Qty | Status |
|---|
| - |
862914T10 |

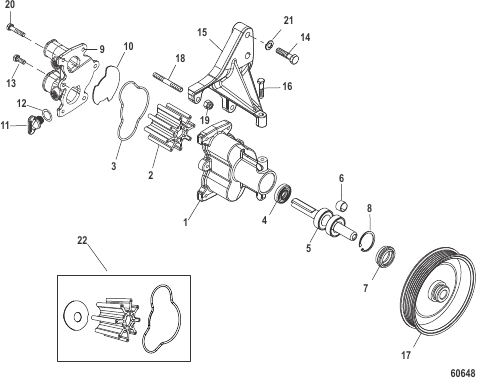

PUMP KIT Sea Water Without Air Fittings
|
1 |
superseded
|
| - |
8M0050018 |
DRIVESHAFT ASSEMBLY KIT
|
1 |
superseded
|
| 1 |
862914A13 |
HOUSING ASSEMBLY Impeller
|
1 |
superseded
|
| 10 |
8M2014176 |
PLATE Without Air Fittings
|
1 |
superseded
|
| 11 |
806608A02 |
PLUG ASSEMBLY (.500-13) Blue
|
2 |
superseded
|
| 12 |
26802 |
O-RING (.424 x .103)
|
2 |
|
| 13 |
4000328 |
SCREW (M6 x 16)
|
6 |
superseded
|
| 14 |
32132 |
SCREW (.375-16 x 1.750)
|
1 |
|
| 15 |
865143T01 |
BRACKET Sea Water Pump
|
1 |
|
| 16 |
4000331 |
SCREW (M6 x 30)
|
1 |
|
| 17 |
862351T |
PULLEY
|
1 |
superseded
|
| 18 |
863853 |
STUD
|
2 |
|
| 19 |
82671112 |
NUT (.375-16)
|
2 |
|
| 2 |
8M0104229 |
IMPELLER KIT See Service Bulletin 2016-09R1
|
1 |
|
| 20 |
4000331 |
SCREW (M6 x 30)
|
2 |
|
| 21 |
35048 |
LOCKWASHER (.375)
|
1 |
|
| 22 |
8M0137219 |
IMPELLER KIT Heavy Duty See Service Bulletin 2016-09R1
|
1 |
|
| 3 |
8M2021987 |
O-RING Formed Also included with Reference 8
|
1 |
superseded
|
| 4 |
8M2001645 |
SEAL Oil
|
1 |
superseded
|
| 5 |
8M0050018 |
DRIVESHAFT ASSEMBLY KIT
|
1 |
superseded
|
| 6 |
NSS |
NOT SOLD SEPARATE SPACER
|
1 |
|
| 7 |
862040 |
SEAL Lip
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE SNAP RING
|
1 |
|
| 9 |
862776A01 |
COVER KIT Impeller Housing Without Air Fittings
|
1 |
|
