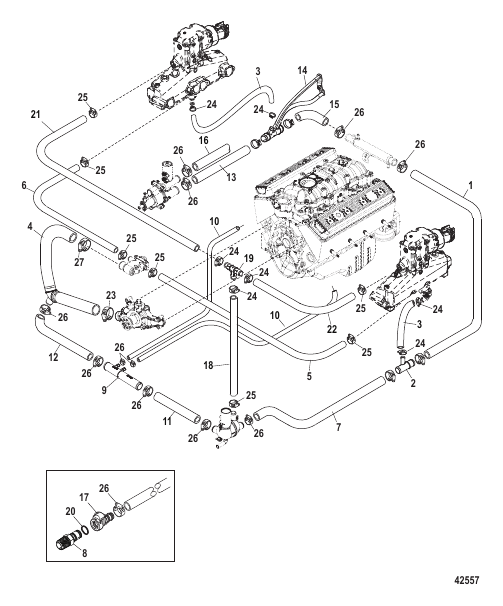

Standard Cooling System
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865255 |
РУКАВ Power Steering Cooler to Accumulator Housing HOSE Power Steering Cooler to Accumulator Housing |
1 | |
| 10 | 8M0062590 |
РУКАВ (24 дюйма) Cylinder Block Drain to Distribution Fitting Port Cut to 24 Inches, Starboard 17 Inches HOSE (24 inch) Cylinder Block Drain to Distribution Fitting Port Cut to 24 Inches, Starboard 17 Inches |
2 | |
| 11 | 863490 |
РУКАВ Water Drain Accumulator to Distribution Fitting HOSE Water Drain Accumulator to Distribution Fitting |
1 | |
| 12 | 865394 |
РУКАВ HOSE |
1 | |
| 13 | 8M2021656 |
РУКАВ Sea Pump to Water Orifice HOSE Sea Pump to Water Orifice |
1 | |
| 14 | 865208T02 |
ШЛАНГ В СБОРЕ Измерительная диафрагма, 3 крана HOSE ASSEMBLY 3 Bib Orifice Meter |
1 | |
| 15 | 8M2021655 |
РУКАВ Water Orifice to Power Steering Cooler HOSE Water Orifice to Power Steering Cooler |
1 | |
| 16 | 8M0062666 |
РУКАВ (Общая длина 96.00") Transom Water Pick Up to Sea Water Pump Cut to 10.00 Inches HOSE (96.00 Inches Bulk) Transom Water Pick Up to Sea Water Pump Cut to 10.00 Inches |
1 | |
| 17 | 862225 |
ФИТИНГ Pushlock - Block Drian Hose FITTING Pushlock - Block Drian Hose |
4 | |
| 18 | 863475 |
РУКАВ Drain Accumulator to Tee Fitting HOSE Drain Accumulator to Tee Fitting |
1 | |
| 19 | 863478 |
ФИТИНГ Тройник FITTING Tee |
1 | |
| 2 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 | |
| 20 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | |
| 21 | 864566 |
РУКАВ Tee Fitting to Starboard Elbow Inline HOSE Tee Fitting to Starboard Elbow Inline |
1 | |
| 21 | 864569 |
РУКАВ Tee Fitting to Starboard Elbow V-Drive HOSE Tee Fitting to Starboard Elbow V-Drive |
1 | |
| 22 | 864565 |
РУКАВ Tee Fitting to Port Elbow Inline HOSE Tee Fitting to Port Elbow Inline |
1 | |
| 22 | 864568 |
РУКАВ Tee Fitting to Port Elbow V-Drive HOSE Tee Fitting to Port Elbow V-Drive |
1 | |
| 23 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
AR | |
| 24 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 25 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
AR | |
| 26 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 27 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
1 | |
| 3 | 8M0062634 |
РУКАВ Общая длина 44.00" Exhaust Manifold to Y Fitting Port, Cut to 9.00 Inches HOSE 44.00 inch Bulk Exhaust Manifold to Y Fitting Port, Cut to 9.00 Inches |
1 | |
| 3 | 8M0062634 |
РУКАВ Общая длина 44.00" Exhaust Manifold to Orifice Fitting Starboard, Cut to 3.5 Inches HOSE 44.00 inch Bulk Exhaust Manifold to Orifice Fitting Starboard, Cut to 3.5 Inches |
1 | |
| 4 | 863456A1 |
ШЛАНГ В СБОРЕ Thermostat Housing to Circulating Pump HOSE ASSEMBLY Thermostat Housing to Circulating Pump |
1 | |
| 5 | 864393 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 | |
| 6 | 863459 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 7 | 866331 |
РУКАВ Y Fitting to Accumulator HOSE Y Fitting to Accumulator |
1 | |
| 8 | 862603 |
ФИТИНГ Male Quick Connector, Threaded - Engine Block FITTING Male Quick Connector, Threaded - Engine Block |
2 | superseded |
| 9 | 864989A01 |
ФИТИНГИ В СБОРЕ Lower Distribution FITTING ASSEMBLY Lower Distribution |
1 | superseded |
| NS | 8M0074364 |
ПРОБКА Hose Clamp End COVER Hose Clamp Hose Clamp End |
AR |
