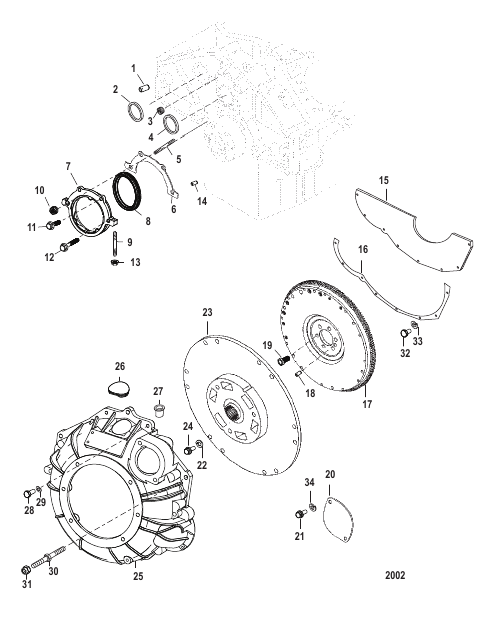

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0092110 |
PIN Dowel Flywheel Housing Location
|
2 |
|
| 10 |
8M0098315 |
NUT
|
1 |
|
| 11 |
14242 |
BOLT (.250-20 x .875)
|
2 |
|
| 12 |
8M0064241 |
BOLT
|
1 |
|
| 13 |
11971 |
NUT (.312-18)
|
2 |
superseded
|
| 14 |
14263 |
PIN Dowel Oil Seal Housing Locating
|
1 |
|
| 15 |
818718A3 |
COVER KIT
|
1 |
|
| 16 |
86015 |
GASKET
|
1 |
|
| 17 |
8M0047213 |
FLYWHEEL
|
1 |
|
| 18 |
43504 |
PIN Dowel Flywheel
|
2 |
|
| 19 |
845757 |
SCREW (.437-20 x 1.00)
|
6 |
superseded
|
| 2 |
34270 |
EXPANSION PLUG (1.625) Engine Core Hole
|
8 |
|
| 20 |
939201 |
PLATE Cover
|
1 |
|
| 21 |
863480 |
SCREW (.375-16 x 1.125)
|
2 |
|
| 22 |
35048 |
LOCKWASHER (.375)
|
A/R |
|
| 23 |
860125T |
DRIVEPLATE ASSEMBLY
|
1 |
|
| 24 |
863480 |
SCREW (.375-16 x 1.125)
|
6 |
|
| 25 |
814309A1 |
HOUSING ASSEMBLY
|
1 |
|
| 26 |
12304 |
PLUG Timing Window
|
1 |
|
| 27 |
38606 |
CAPLUG (#10)
|
1 |
|
| 28 |
47277 |
SCREW (.312-24 x .750)
|
1 |
|
| 28 |
34353 |
SCREW (.375-16 x 1.00)
|
1 |
|
| 28 |
37612 |
SCREW (.375-16 x 1.250)
|
2 |
|
| 28 |
47688 |
SCREW (.375-16 x 2.750)
|
2 |
|
| 29 |
400247 |
LOCKWASHER (M8)
|
1 |
|
| 3 |
32561 |
PLUG Pipe - Allen Head (.250-18) Oil Galley
|
4 |
superseded
|
| 30 |
8M2004610 |
STUD (3/16-16 x 2.25)
|
2 |
|
| 31 |
32219 |
NUT (.375-16)
|
2 |
|
| 32 |
98253 |
SCREW (.250-20 x .500)
|
5 |
|
| 33 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
5 |
|
| 34 |
32993 |
LOCKWASHER (.437)
|
2 |
|
| 4 |
72640 |
PLUG Camshaft Bearing Hole
|
1 |
|
| 5 |
14827 |
STUD (.250-20 x 2.180)
|
2 |
|
| 6 |
881715 |
GASKET Crankshaft Oil Seal Housing
|
1 |
|
| 7 |
852940 |
HOUSING ASSEMBLY With Studs Crankshaft Oil Seal
|
1 |
|
| 8 |
852941 |
SEAL Crankshaft Oil
|
1 |
|
| 9 |
11989 |
STUD (.312-18 x 1.6718)
|
2 |
|
