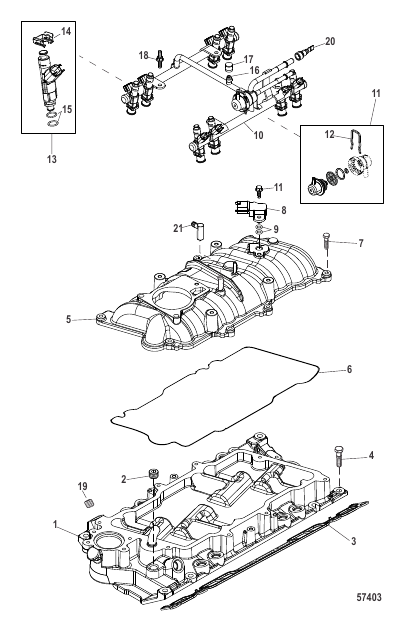

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0097032 |
MANIFOLD Intake
|
1 |
|
| 10 |
8M0070997 |
FUEL RAIL ASSEMBLY
|
1 |
disc.
|
| 11 |
885174 |
REGULATOR Fuel Pressure
|
1 |
|
| 12 |
885175 |
CLIP Retaining
|
1 |
disc.
|
| 13 |
879312003 |
INJECTOR
|
8 |
|
| 14 |
8M2001570 |
CLIP Injector
|
1 |
|
| 15 |
8M0046869 |
O-RING KIT
|
1 |
|
| 16 |
885178 |
VALVE Fuel Pressure Service
|
1 |
|
| 17 |
885179 |
CAP Fuel Pressure Sevice Valve
|
1 |
|
| 18 |
885180 |
SCREW
|
4 |
|
| 19 |
384071 |
FITTING (1/2-14)
|
1 |
|
| 2 |
12524 |
PLUG (.375-18 x .475) Brass
|
1 |
|
| 20 |
8623601 |
PLUG Fuel Rail Block Off
|
1 |
|
| 21 |
863432T |
FITTING 90 Degree Vent
|
1 |
|
| 3 |
807473A1 |
GASKET SET Intake Manifold
|
1 |
|
| 4 |
808010 |
SCREW (.312-18 x 1.375)
|
8 |
superseded
|
| 5 |
8M0097033 |
MANIFOLD Intake Upper
|
1 |
|
| 6 |
8M0097034 |
GASKET Intake Manifold
|
1 |
|
| 7 |
885166 |
SCREW
|
13 |
|
| 8 |
885165 |
SENSOR Temperature and Pressure
|
1 |
superseded
|
| 9 |
881733 |
SEAL
|
2 |
|
