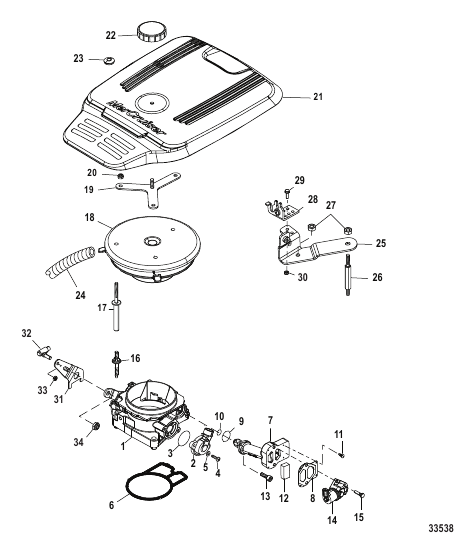

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0096994 |
THROTTLE BODY ASSEMBLY
|
1 |
|
| 10 |
808547 |
O-RING
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Screw-Drive
|
4 |
|
| 12 |
8M2001030 |
FILTER
|
1 |
superseded
|
| 13 |
4008612 |
SCREW (M4 x 12)
|
2 |
|
| 14 |
862998 |
VALVE Idle Air
|
1 |
superseded
|
| 15 |
4008820 |
SCREW (M6 x 20)
|
2 |
|
| 16 |
8M0088142 |
STUD
|
3 |
|
| 17 |
864338 |
STUD Special
|
3 |
|
| 18 |
863416T |
FLAME ARRESTOR
|
1 |
|
| 19 |
863423 |
BRACKET Cover Mount
|
1 |
|
| 2 |
8M0097035 |
SENSOR TPS
|
1 |
superseded
|
| 20 |
401386 |
NUT (M6) Stainless Steel
|
3 |
|
| 21 |
879288T66 |
COVER Black Engine
|
1 |
|
| 21 |
8M0125219 |
COVER Blue Flame Engine (Quicksilver Branded)
|
1 |
|
| 22 |
863701 |
KNOB Engine Cover
|
1 |
|
| 23 |
86400 |
WASHER
|
1 |
|
| 24 |
1589424 |
HOSE (16.50 Inches Bulk) Breather
|
1 |
superseded
|
| 25 |
863420T |
BRACKET Throttle Anchor
|
1 |
|
| 26 |
863439 |
STUD
|
1 |
|
| 27 |
401366 |
NUT (M6) Stainless Steel
|
2 |
|
| 28 |
807485T |
BRACKET ASSEMBLY
|
1 |
|
| 29 |
89766 |
SCREW (#10-32 x .620) Stainless Steel
|
2 |
|
| 3 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 30 |
826709106 |
NUT (#10-32) Stainless Steel
|
2 |
superseded
|
| 31 |
863417 |
BRACKET Throttle
|
1 |
|
| 32 |
807484 |
BALL JOINT ASSEMBLY Quick Release
|
1 |
|
| 33 |
8267089 |
NUT (.250-28)
|
1 |
|
| 34 |
8267138 |
NUT (.25-20)
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Screw Kit, TPS
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 6 |
8M4502066 |
GASKET Throttle Body
|
1 |
superseded
|
| 7 |
866295A02 |
IAC ADAPTER KIT
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Gasket
|
1 |
|
| 9 |
863006 |
O-RING (10.82 x 1.78)
|
1 |
|
| NS |
879194A17 |
DECAL SET 5.7L Towsport Cover (Includes Center, Starboard, Port, Spec & Belt Routing)
|
1 |
|
| NS |
8M0130324 |
DECAL 350 MPI Quicksilver
|
1 |
|
