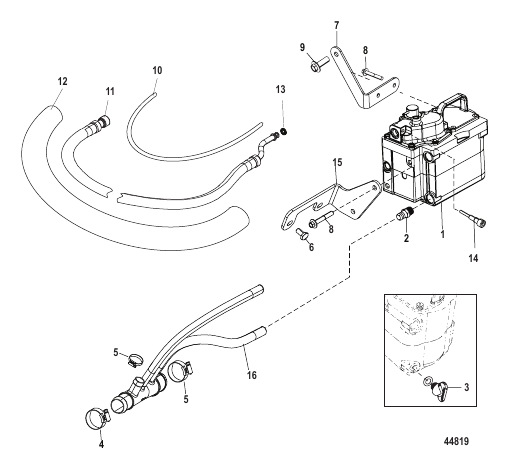

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0047215 |
MODULE KIT Fuel Pump, Complete With Drain Port
|
1 |
|
| 10 |
8M0063567 |
HOSE 58.00 inch Bulk
|
1 |
|
| 11 |
8M2005177 |
LINE Cooler to Rail
|
1 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Insulator Sleeve
|
1 |
|
| 13 |
863151 |
SEAL Quad Ring
|
1 |
superseded
|
| 14 |
866114 |
SCREW (.250-28) Special
|
1 |
|
| 15 |
864458 |
BRACKET
|
1 |
|
| 16 |
865208T02 |
HOSE ASSEMBLY 3 Bib Orifice Meter
|
1 |
|
| 2 |
8M2010476 |
FITTING (3/8-18)
|
2 |
|
| 3 |
806608A02 |
PLUG ASSEMBLY (.500-13) Blue Housing With Drain Port Only
|
1 |
superseded
|
| 4 |
815504228 |
CLAMP Worm Gear
|
1 |
|
| 5 |
815504206 |
CLAMP Worm Gear
|
2 |
|
| 6 |
40001195 |
SCREW (M10 x 30)
|
2 |
|
| 7 |
865216 |
BRACKET
|
1 |
|
| 8 |
4010720 |
SCREW (M8 x 20)
|
4 |
|
| 9 |
4010820 |
SCREW (M10 x 20) Hex Flange - Stainless Steel
|
1 |
|
| NS |
8M0047216 |
HOUSING Fuel Module Lower
|
1 |
|
