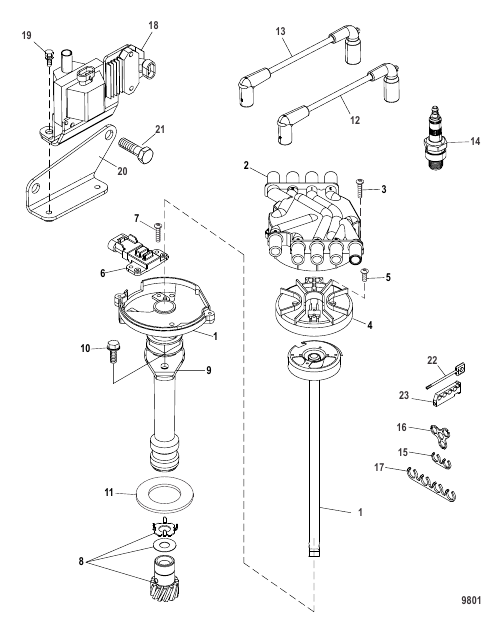

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
879150A87 |
DISTRIBUTOR ASSEMBLY
|
1 |
|
| 10 |
40011149 |
SCREW (M8 x 25) Stainless Steel
|
1 |
|
| 11 |
344863 |
GASKET
|
1 |
|
| 12 |
863656A1 |
CABLE KIT Ignition (Spark Plugs and Coil)
|
1 |
|
| 13 |
863657A1 |
CABLE ASSEMBLY Coil Wire Assembly
|
1 |
|
| 14 |
8M2018369 |
SPARK PLUG (NGK ITR4A15)
|
8 |
superseded
|
| 15 |
54676 |
RETAINER Two Wire
|
2 |
|
| 16 |
32783 |
RETAINER Three Wire
|
2 |
|
| 17 |
32784 |
RETAINER Four Wire
|
2 |
disc.
|
| 18 |
8M0054588 |
COIL Ignition
|
1 |
|
| 19 |
657461 |
SCREW AND LOCKWASHER (.250-20 x .625)
|
2 |
|
| 2 |
8M6001106 |
DISTRIBUTOR CAP Distributor
|
1 |
superseded
|
| 20 |
863663T |
BRACKET Coil
|
1 |
|
| 21 |
98261 |
SCREW (.375-16 x .750)
|
2 |
|
| 22 |
90096A1 |
STUD ASSEMBLY (#10-32 x Special)
|
2 |
|
| 23 |
72821 |
RETAINER
|
2 |
|
| 3 |
884786 |
SCREW
|
2 |
disc.
|
| 4 |
8M6001222 |
ROTOR
|
1 |
superseded
|
| 5 |
884788 |
SCREW
|
2 |
|
| 6 |
898141 |
SENSOR Hall Effect Camshaft Position
|
1 |
superseded
|
| 7 |
884788 |
SCREW
|
2 |
|
| 8 |
884789 |
GEAR ASSEMBLY
|
1 |
disc.
|
| 9 |
88731 |
CLAMP
|
1 |
|
