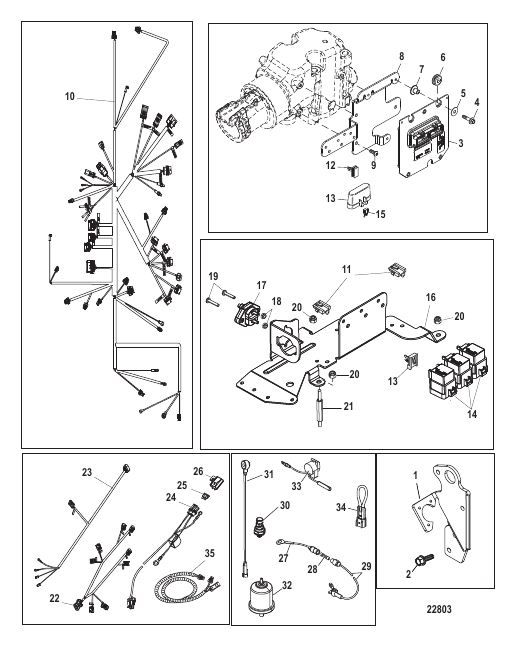

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
865480T |
BRACKET Harness Mounting/Lifting Eye
|
1 |
|
| 10 |
866060T02 |
HARNESS ASSEMBLY Main Engine
|
1 |
|
| 11 |
865205 |
CLIP Relay Mounting
|
2 |
|
| 12 |
804352 |
CLIP Fuse Block Mounting
|
1 |
|
| 13 |
858754 |
COVER Fuse
|
1 |
|
| 14 |
882751 |
RELAY
|
3 |
superseded
|
| 15 |
832969T15 |
FUSE Mini - Blue - 15 Ampere
|
2 |
|
| 15 |
832969T20 |
FUSE Mini - Yellow - 20 Ampere
|
3 |
|
| 16 |
865483T |
BRACKET Circuit Breaker and Relays
|
1 |
|
| 17 |
11178A01 |
BREAKER Circuit - 50 Ampere Button Reset
|
1 |
|
| 18 |
68219 |
NUT (#10-32) Stainless Steel
|
2 |
|
| 19 |
45862 |
SCREW (#10-32 x .875)
|
2 |
|
| 2 |
98261 |
SCREW (.375-16 x .750)
|
2 |
|
| 20 |
401366 |
NUT (M6) Stainless Steel
|
3 |
|
| 21 |
863439 |
STUD
|
1 |
|
| 22 |
865983T01 |
HARNESS ASSEMBLY Injectors
|
1 |
|
| 23 |
865769T01 |
HARNESS ASSEMBLY Transmission
|
1 |
|
| 24 |
888416T04 |
HARNESS ASSEMBLY DTS, Clean Power, 15 Feet Clean Power
|
1 |
superseded
|
| 25 |
862646 |
FUSE Tan - 5 Ampere
|
1 |
|
| 26 |
828054 |
COVER Fuse
|
1 |
|
| 27 |
95084A10 |
CABLE ASSEMBLY (5.00 Inches) Red Bravo
|
1 |
superseded
|
| 28 |
79091 |
FUSE 20 Ampere Bravo
|
1 |
superseded
|
| 29 |
95084A9 |
CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip Bravo
|
1 |
|
| 3 |
87917215T |
ECM Engine Control Module
|
1 |
|
| 30 |
8M0157742 |
SENSOR Water Pressure
|
1 |
|
| 30 |
8M6000623 |
SENSOR Water Pressure Pressure (50 PSI) Transmission Cooler
|
1 |
superseded
|
| 30 |
881879T11 |
SENSOR Pressure (0 - 100 PSI) Oil
|
1 |
|
| 31 |
878187 |
SENSOR ASSEMBLY Knock
|
2 |
superseded
|
| 32 |
8M0068784 |
OIL PRESSURE SENDER Oil
|
1 |
|
| 32 |
37293T |
SENDER ASSEMBLY Oil Dual Station
|
1 |
|
| 33 |
816492A15 |
ALARM KIT
|
1 |
|
| 34 |
864337A1 |
CONNECTOR Black Jumper
|
1 |
|
| 35 |
862262A2 |
HARNESS ASSEMBLY Boost Pump
|
1 |
superseded
|
| 4 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 5 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 6 |
834985 |
GROMMET
|
3 |
superseded
|
| 7 |
856954 |
BUSHING
|
3 |
|
| 8 |
863424T |
BRACKET ECM
|
1 |
|
| 9 |
860008 |
SCREW (.250-20 x .625) Torx
|
3 |
|
