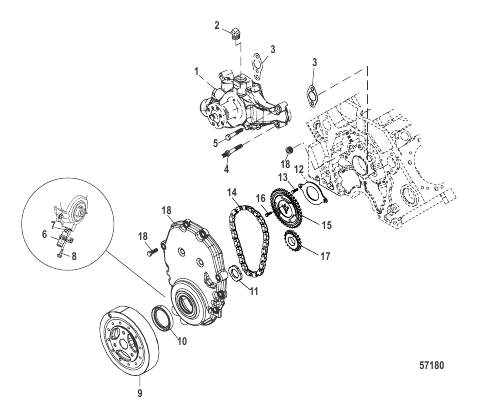

Front Cover and Circulating Pump
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8503991 |
НАСОС В СБОРЕ Вода PUMP ASSEMBLY Water |
1 | superseded |
| 10 | 863396001 |
РАСПРЕДЕЛИТЕЛЬНАЯ КРЫШКА В СБОРЕ Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately TIMING COVER ASSEMBLY Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately |
1 | superseded |
| 11 | 863398 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА RELUCTOR WHEEL |
1 | |
| 12 | 845941 |
ФИКСАТОР Camshaft RETAINER Camshaft |
1 | |
| 13 | 845943 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 14 | 17161T |
ЦЕПЬ Timing CHAIN Timing |
1 | superseded |
| 15 | 8116591 |
ЗВЕЗДОЧКА Camshaft SPROCKET Camshaft |
1 | |
| 16 | 845942 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
3 | superseded |
| 17 | 17160 |
ЗВЕЗДОЧКА Crankshaft SPROCKET Crankshaft |
1 | superseded |
| 18 | 816565 |
ПРОБКА Колпачок (0.468) PLUG Cup (.468) |
1 | |
| 2 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
1 | superseded |
| 3 | 34897 |
ПРОКЛАДКА Water Pump GASKET Water Pump |
2 | |
| 4 | 8M0076418 |
ШПИЛЬКА STUD |
2 | |
| 5 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 5 | 47688 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
1 | |
| 6 | 864297T01 |
ДАТЧИК В СБОРЕ Crankshaft Position SENSOR ASSEMBLY Crankshaft Position |
1 | |
| 7 | 885192 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 8 | 884018001 |
ВИНТ SCREW |
1 | |
| 9 | 863397 |
ВИБРОГАСИТЕЛЬ HARMONIC BALANCER |
1 |
