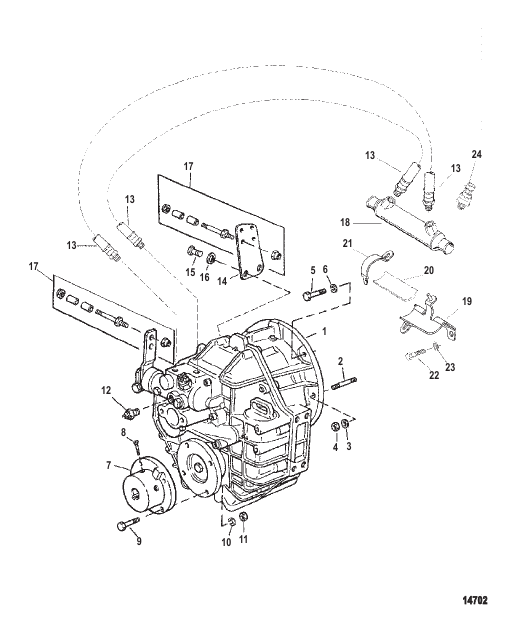

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
863744T2 |
TRANSMISSION (1.5:1 Ratio) (Down Angle)
|
1 |
disc.
|
| 1 |
863744T3 |
TRANSMISSION (2.0:1 Ratio) (Down Angle)
|
1 |
superseded
|
| 1 |
863744T4 |
TRANSMISSION (2.50:1 Ratio) (Down Angle)
|
1 |
superseded
|
| 1 |
863745T2 |
TRANSMISSION (1.5:1 Ratio) (V-Drive)
|
1 |
disc.
|
| 1 |
863745T3 |
TRANSMISSION (2.0:1 Ratio) (V-Drive)
|
1 |
disc.
|
| 1 |
863745T4 |
TRANSMISSION (2.5:1 Ratio) (V-Drive)
|
1 |
disc.
|
| 10 |
35048 |
LOCKWASHER (.375) (4.00 Inch Flange)
|
4 |
|
| 10 |
32993 |
LOCKWASHER (.437) (5.00 Inch Flange)
|
4 |
|
| 11 |
32219 |
NUT (.375-16) (4.00 Inch Flange)
|
4 |
|
| 11 |
22024 |
NUT (.437-14) (5.00 Inch Flange)
|
4 |
|
| 12 |
88031 |
SWITCH ASSEMBLY Temperature
|
1 |
|
| 13 |
8054781 |
HOSE (19.50) Oil
|
2 |
|
| 14 |
806238 |
BRACKET Shift Linkage
|
1 |
|
| 15 |
40001124 |
SCREW (M8 x 14)
|
2 |
|
| 16 |
400247 |
LOCKWASHER (M8)
|
2 |
|
| 17 |
97477A3 |
STUD KIT
|
2 |
|
| 18 |
863832T01 |
COOLER Oil
|
1 |
|
| 19 |
863850 |
BRACKET Transmission Oil Cooler
|
1 |
|
| 2 |
805259 |
STUD
|
4 |
|
| 20 |
772233 |
PAD
|
1 |
|
| 21 |
807445T |
CLAMP
|
1 |
|
| 22 |
37612 |
SCREW (.375-16 x 1.250)
|
1 |
|
| 23 |
35048 |
LOCKWASHER (.375)
|
1 |
|
| 24 |
8M0157742 |
SENSOR Water Pressure Pressure
|
1 |
|
| 3 |
22248 |
WASHER (.453 x .875 x .060)
|
4 |
|
| 4 |
34933 |
NUT (.437-20) Stainless Steel
|
4 |
superseded
|
| 5 |
47462 |
SCREW (.437-14 x 1.250)
|
2 |
|
| 6 |
32993 |
LOCKWASHER (.437)
|
2 |
|
| 7 |
79476A1 |
FLANGE ASSEMBLY (5.00 x 1.00)
|
OPT |
disc.
|
| 7 |
79476A3 |
FLANGE ASSEMBLY (5.00 x 1.25)
|
OPT |
disc.
|
| 7 |
79476A4 |
FLANGE ASSEMBLY (5.00 x 1.375)
|
OPT |
|
| 7 |
79476A5 |
FLANGE ASSEMBLY (5.00 x 1.50)
|
OPT |
|
| 7 |
79476A6 |
FLANGE ASSEMBLY (5.00 x 1.75)
|
OPT |
|
| 8 |
60171 |
SCREW (.375-16 x 1.250) Flange
|
2 |
|
| 8 |
60169 |
SCREW (.375-16 x .750) Flange
|
2 |
|
| 9 |
68101 |
SCREW (.375-16 x 1.375) (4.00 Inch Flange)
|
4 |
|
| 9 |
805159 |
SCREW (.437-20 x 1.500) (5.00 Inch Flange)
|
4 |
|
