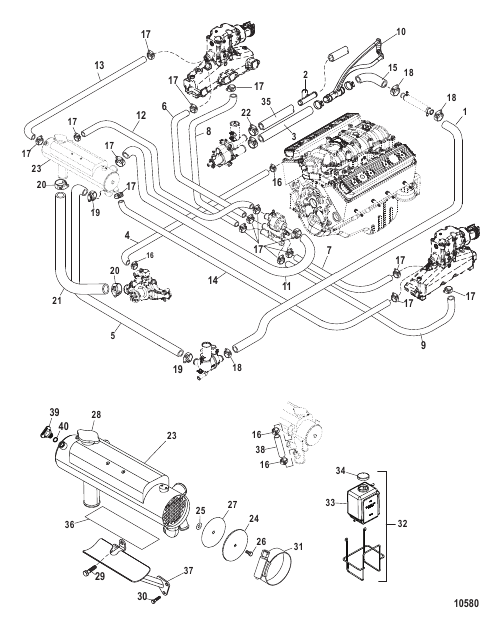

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865247 |
РУКАВ Transmission Cooler to Accumulator Housing HOSE Transmission Cooler to Accumulator Housing |
1 | |
| 10 | 865317T01 |
ФИТИНГ / ШЛАНГ В СБОРЕ Измерительная диафрагма, 2 крана FITTING/HOSE ASSEMBLY 2 Bib Orifice Meter |
1 | |
| 11 | 864506 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 12 | 864507 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 13 | 8M2005027 |
РУКАВ Heat Exchanger to Starboard Elbow (Non Riser and 3 Inch Warm Riser) HOSE Heat Exchanger to Starboard Elbow (Non Riser and 3 Inch Warm Riser) |
1 | |
| 13 | 864955 |
РУКАВ Heat Exchanger to Starboard Elbow (6 Inch Warm Riser) HOSE Heat Exchanger to Starboard Elbow (6 Inch Warm Riser) |
1 | disc. |
| 13 | 864544 |
РУКАВ Heat Exchanger to Starboard Elbow (V-Drive)(Without Riser) HOSE Heat Exchanger to Starboard Elbow (V-Drive)(Without Riser) |
1 | |
| 13 | 864544 |
РУКАВ Heat Exchanger to Starboard Elbow (V-Drive)(3 Inch Warm Riser) HOSE Heat Exchanger to Starboard Elbow (V-Drive)(3 Inch Warm Riser) |
1 | |
| 13 | 864974 |
РУКАВ Heat Exchanger to Starboard Elbow (V-Drive)(6 Inch Warm Riser) HOSE Heat Exchanger to Starboard Elbow (V-Drive)(6 Inch Warm Riser) |
1 | |
| 14 | 864726 |
РУКАВ Heat Exchanger to Port Elbow (Non Riser and 3 Inch Warm Riser) HOSE Heat Exchanger to Port Elbow (Non Riser and 3 Inch Warm Riser) |
1 | |
| 14 | 864953 |
РУКАВ Heat Exchanger to Port Elbow (6 Inch Warm Riser) HOSE Heat Exchanger to Port Elbow (6 Inch Warm Riser) |
1 | disc. |
| 14 | 864543 |
РУКАВ Heat Exchanger to Port Elbow (V-Drive)(Without Riser) HOSE Heat Exchanger to Port Elbow (V-Drive)(Without Riser) |
1 | |
| 14 | 864543 |
РУКАВ Heat Exchanger to Port Elbow (V-Drive)(3 Inch Warm Riser) HOSE Heat Exchanger to Port Elbow (V-Drive)(3 Inch Warm Riser) |
1 | |
| 14 | 864973 |
РУКАВ Heat Exchanger to Port Elbow (V-Drive)(6 Inch Warm Riser) HOSE Heat Exchanger to Port Elbow (V-Drive)(6 Inch Warm Riser) |
1 | |
| 15 | 865235 |
РУКАВ Water Orifice to Power Steering Cooler HOSE Water Orifice to Power Steering Cooler |
1 | superseded |
| 16 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
1 | |
| 18 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
1 | superseded |
| 19 | 815504228 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 2 | 864727 |
ФИТИНГ Y, (3) 1-1/4" Н.Д. ниппелей шлангов FITTING Y, (3) 1-1/4 In. OD Hose Barbs |
1 | |
| 20 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
1 | |
| 21 | 864432 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | superseded |
| 22 | 815504224 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 23 | 864395T |
ТЕПЛООБМЕННИК Closed Cooling HEAT EXCHANGER Closed Cooling |
1 | superseded |
| 24 | 864708 |
КРЫШКА End, Heat Exchanger COVER End Cap End, Heat Exchanger |
2 | |
| 25 | 818679 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 26 | 94247 |
ВИНТ (0.375-16 x 0.750), нержавеющая сталь SCREW (.375-16 x .750) Stainless Steel |
2 | |
| 27 | 864707 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 28 | 8148791 |
ПРОБКА Pressure CAP Pressure |
1 | |
| 29 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
1 | |
| 3 | 865234 |
РУКАВ Sea Water Pump to Water Orifice HOSE Sea Water Pump to Water Orifice |
||
| 30 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
3 | |
| 31 | 815504396 |
ЗАЖИМ Червячная передача Heat Exchanger CLAMP Worm Gear Heat Exchanger |
1 | |
| 32 | 71587A10 |
КОМПЛЕКТ ДЛЯ ВОССТАНОВЛЕНИЯ Охлаждающая жидкость RECOVERY KIT Coolant |
1 | |
| 33 | 71587A11 |
БАЧОК Пластик Coolant Recovery Kit BOTTLE Plastic Coolant Recovery Kit |
1 | |
| 34 | 72058 |
ПРОБКА Coolant Recovery Bottle CAP Bottle Coolant Recovery Bottle |
1 | |
| 35 | 1743579 |
РУКАВ (Общая длина 96.00") Sea Water Pump to Water Pick Up HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up |
1 | superseded |
| 36 | 18431 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
1 | |
| 37 | 864429T |
КРОНШТЕЙН Cooler BRACKET Cooler |
1 | |
| 38 | 864533 |
РУКАВ HOSE |
1 | superseded |
| 39 | 806608A1 |
Комплект пробки (0.500-13), королевский синий PLUG KIT (.500-13) Royal Blue |
1 | superseded |
| 4 | 864551 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 40 | 32509 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070) O-RING (.489 x .070) |
1 | |
| 5 | 864431 |
РУКАВ Distribution Fitting to Heat Exchanger HOSE Distribution Fitting to Heat Exchanger |
1 | |
| 6 | 864539 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard)(Non Riser) HOSE Thermostat Housing to Upper Manifold (Starboard)(Non Riser) |
1 | |
| 6 | 864956 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard)(3 Inch and 6 Inch Warm Riser) HOSE Thermostat Housing to Upper Manifold (Starboard)(3 Inch and 6 Inch Warm Riser) |
1 | |
| 7 | 864552 |
РУКАВ Thermostat Housing to Upper Manifold (Port)(Non Riser) HOSE Thermostat Housing to Upper Manifold (Port)(Non Riser) |
1 | |
| 7 | 864954 |
РУКАВ Thermostat Housing to Upper Manifold (Port)(3 Inch and 6 Inch Warm Riser) HOSE Thermostat Housing to Upper Manifold (Port)(3 Inch and 6 Inch Warm Riser) |
1 | |
| 8 | 864509 |
РУКАВ Thermostat Housing to Lower Manifold (Starboard) HOSE Thermostat Housing to Lower Manifold (Starboard) |
1 | |
| 9 | 864508 |
РУКАВ Thermostat Housing to Lower Manifold (Port) HOSE Thermostat Housing to Lower Manifold (Port) |
1 | |
| NS | 774572 |
РУКАВ (Общая длина 48.00") HOSE (48.00 Inches Bulk) |
1 |
