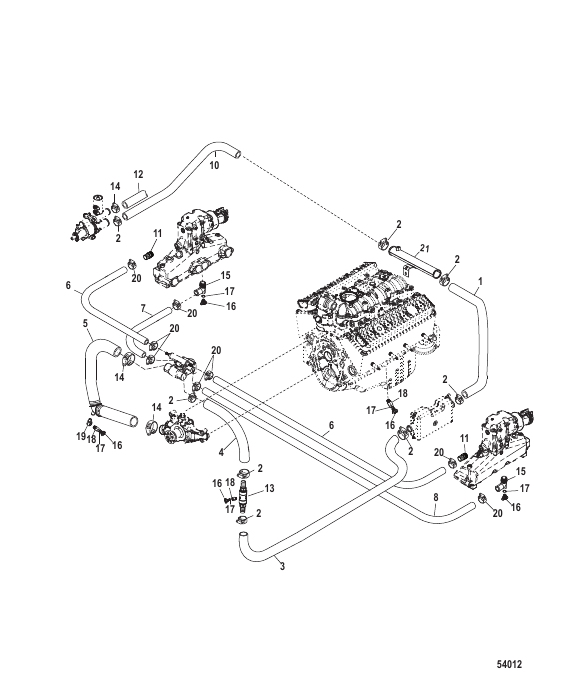

Standard Cooling System
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8600891 |
РУКАВ Литой Power Steering to Fuel Cooler HOSE Molded Power Steering to Fuel Cooler |
1 | |
| 10 | 863611 |
РУКАВ Seawater Pump to Steering Cooler HOSE Seawater Pump to Steering Cooler |
1 | |
| 11 | 866725 |
ФИТИНГ Прямой (0.750-14) Barb FITTING Straight (.750-14) Barb |
2 | |
| 12 | 8M0062666 |
РУКАВ (Общая длина 96.00") HOSE (96.00 Inches Bulk) |
1 | |
| 13 | 862271A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 14 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
5 | |
| 15 | 862210A01 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив ELBOW KIT Drain |
2 | |
| 16 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
2 | superseded |
| 17 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
2 | |
| 18 | 860088 |
ВТУЛКА BUSHING |
3 | superseded |
| 19 | 46982 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 2 | 815504224 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
10 | |
| 20 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
4 | |
| 21 | 863820T1 |
ОХЛАДИТЕЛЬ COOLER |
1 | superseded |
| 3 | 864578 |
РУКАВ Drain Fitting to Check Valve HOSE Drain Fitting to Check Valve |
1 | |
| 4 | 864579 |
РУКАВ Check Valve to Thermostat Housing HOSE Check Valve to Thermostat Housing |
1 | |
| 5 | 864703A1 |
РУКАВ Circulating Pump to Drain Elbow HOSE Circulating Pump to Drain Elbow |
1 | |
| 6 | 864979 |
РУКАВ HOSE |
1 | |
| 7 | 863459 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 8 | 863458 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 |
