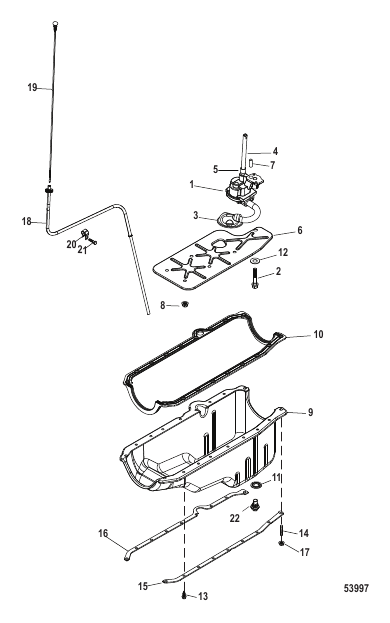

Oil Pan and Oil Pump
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 809907T03 |
НАСОС/ЭКРАН В СБОРЕ Масло PUMP/SCREEN ASSEMBLY Oil |
1 | discontinued |
| 10 | 138651 |
ПРОКЛАДКА Oil Pan GASKET Oil Pan |
1 | superseded |
| 11 | 8M0077608 |
ПРОКЛАДКА Drain Screw GASKET Drain Screw |
1 | |
| 12 | 27339 |
ШАЙБА WASHER |
1 | |
| 13 | 14070 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
14 | |
| 14 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| 15 | 14257 |
АРМАТУРА Port REINFORCEMENT Port |
1 | |
| 16 | 14256 |
АРМАТУРА Starboard REINFORCEMENT Starboard |
1 | |
| 17 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 18 | 862704A4 |
ТРУБА Dipstick TUBE Dipstick |
1 | |
| 19 | 861942T9 |
ЩУП Уровень масла DIPSTICK Oil Level |
1 | |
| 2 | 17346 |
ВИНТ Oil Pump SCREW Oil Pump |
1 | |
| 20 | 805625 |
ЗАЖИМ Dipstick Tube CLIP Dipstick Tube |
1 | |
| 21 | 8M0040582 |
ВИНТ SCREW |
1 | |
| 22 | 49956 |
ВИНТ Слив SCREW Drain |
1 | |
| 3 | 809909 |
ЭКРАН Oil Pump Pick Up SCREEN Oil Pump Pick Up |
1 | |
| 4 | 36184 |
ВАЛ SHAFT |
1 | |
| 5 | 36183 |
ФИКСАТОР RETAINER |
1 | |
| 6 | 986021 |
ОТРАЖАТЕЛЬ Oil DEFLECTOR Oil |
1 | |
| 7 | 843378 |
ШТИФТ Штифт Alignment, Oil Pump PIN Dowel Alignment, Oil Pump |
1 | |
| 8 | 845602 |
ГАЙКА (.375-16) NUT (.375-16) |
5 | |
| 9 | 809910 |
ПОДДОН Масло Bravo PAN Oil Bravo |
1 | superseded |
| 9 | 889501T |
ПОДДОН Масло Inboard PAN Oil Inboard |
1 |
