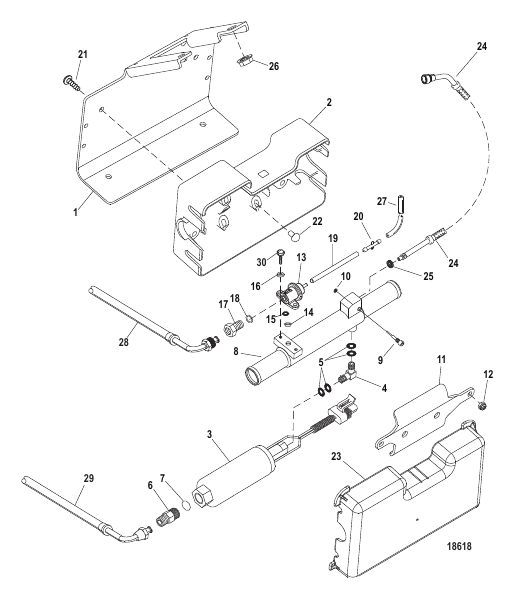

Fuel Pump and Fuel Cooler
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 863422T1 |
КРОНШТЕЙН Fuel Cooler BRACKET Fuel Cooler |
1 | |
| 10 | 861414 |
КОЛЬЦО Стопор Included with Fuel Pump Assembly RING Retaining Included with Fuel Pump Assembly |
1 | |
| 11 | 807979T |
КРОНШТЕЙН BRACKET |
1 | |
| 12 | 29598 |
ГАЙКА (0.250-28), нержавеющая сталь NUT (.250-28) Stainless Steel |
2 | |
| 13 | 861126A1 |
КОМПЛЕКТ РЕГУЛЯТОРА (43 фунт. на кв. дюйм) Fuel Pressure REGULATOR KIT (43 PSI) Fuel Pressure |
1 | |
| 14 | 805406 |
ФИЛЬТР Fuel Pressure Regulator - Included with Fuel Pump Assembly FILTER Fuel Pressure Regulator - Included with Fuel Pump Assembly |
1 | |
| 15 | 805531 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.476 x 0.075) Included with Fuel Pump Assembly O-RING (.476 x .075) Included with Fuel Pump Assembly |
1 | |
| 16 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
2 | |
| 17 | 808002A1 |
КОМПЛЕКТ ФИТИНГОВ FITTING KIT |
1 | |
| 18 | 36533 |
ШАЙБА (0.328 x 0.562 x 0.0312), медь WASHER (.328 x .562 x .0312) Copper |
1 | |
| 19 | 8M0063567 |
РУКАВ Общая длина 58.00" HOSE 58.00 inch Bulk |
1 | |
| 2 | 807685T |
РАЗЪЕДИНИТЕЛЬ Base INSULATOR Base |
1 | |
| 20 | 860273 |
СОЕДИНИТЕЛЬ Hose CONNECTOR Hose |
1 | discontinued |
| 21 | 808005 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
4 | |
| 22 | 269011 |
УПОР Резина BUMPER Rubber |
8 | |
| 23 | 807930T01 |
РАЗЪЕДИНИТЕЛЬ Cover INSULATOR Cover |
1 | |
| 24 | 864513001 |
ШЛАНГ В СБОРЕ Fuel Cooler to Fuel Rail HOSE ASSEMBLY Fuel Cooler to Fuel Rail |
1 | superseded |
| 25 | 863151 |
УПЛОТНЕНИЕ Счетверенное кольцо Included with Fuel Pump Assembly SEAL Quad Ring Included with Fuel Pump Assembly |
1 | superseded |
| 26 | 860069 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 27 | 8M0062600 |
РУКАВ Общая длина 54.00" Fuel Pressure Regulator to Intake Manifold HOSE 54.00 inch Bulk Fuel Pressure Regulator to Intake Manifold |
1 | superseded |
| 28 | 8M0045997 |
ТРУБОПРОВОД Топливо Fuel Pressure Regulator to Fuel Filter LINE Fuel Fuel Pressure Regulator to Fuel Filter |
1 | |
| 29 | 8M0046000 |
ТРУБОПРОВОД Топливо Fuel Filter to Fuel Pump LINE Fuel Fuel Filter to Fuel Pump |
1 | |
| 3 | 861156A03 |
КОМПЛЕКТ НАСОСА / ОХЛАДИТЕЛЯ Топливо PUMP/COOLER KIT Fuel |
1 | superseded |
| 30 | 852368 |
ВИНТ (№10-24 x 0.750) SCREW (#10-24 x .750) |
2 | |
| 4 | 807783A1 |
ФИТИНГИ В СБОРЕ 90 градусов FITTING ASSEMBLY 90 Degree |
1 | |
| 5 | 805063 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) Included with Fuel Pump Assembly O-RING (.301 x .070) Included with Fuel Pump Assembly |
4 | superseded |
| 6 | 808001A1 |
ФИТИНГИ В СБОРЕ FITTING ASSEMBLY |
1 | |
| 7 | 805062 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.530 x 0.082) Included with Fuel Pump Assembly O-RING (.530 x .082) Included with Fuel Pump Assembly |
1 | |
| 8 | 865356T |
ОХЛАДИТЕЛЬ Fuel- Included with Fuel Pump Assembly COOLER Fuel- Included with Fuel Pump Assembly |
superseded | |
| 9 | 866114 |
ВИНТ (0.250-28), специальный Included with Fuel Pump Assembly SCREW (.250-28) Special Included with Fuel Pump Assembly |
1 |
