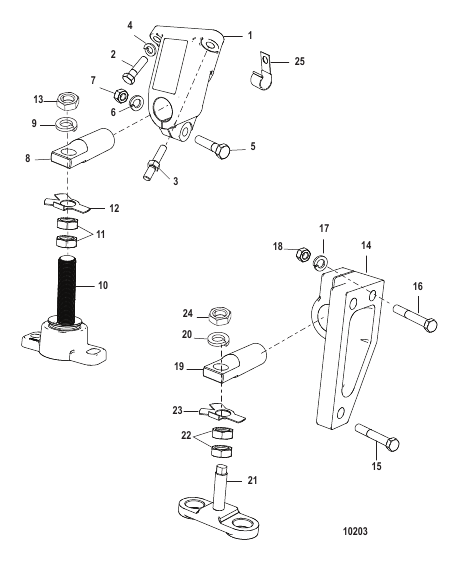

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 71128A2 |
КРОНШТЕЙН Front BRACKET Front |
2 | |
| 10 | 66284A2 |
БАЗА В СБОРЕ Engine End BASE ASSEMBLY Engine End |
2 | |
| 11 | 20739 |
ГАЙКА (.750-16) Jam NUT (.750-16) Jam |
2 | |
| 12 | 66658 |
ЛЕПЕСТКОВАЯ ШАЙБА Tab TAB WASHER Tab |
2 | |
| 13 | 20739 |
ГАЙКА (.750-16) Jam NUT (.750-16) Jam |
2 | |
| 14 | 805496T |
КРОНШТЕЙН (Port)(Down Angle Transmission) BRACKET (Port)(Down Angle Transmission) |
1 | |
| 14 | 805496T1 |
КРОНШТЕЙН (Starboard)(Down Angle Transmission) BRACKET (Starboard)(Down Angle Transmission) |
1 | |
| 14 | 807724T |
КРОНШТЕЙН (Port)(V-Drive Transmission) BRACKET (Port)(V-Drive Transmission) |
1 | |
| 14 | 807725T |
КРОНШТЕЙН (Starboard)(V-Drive Transmission) BRACKET (Starboard)(V-Drive Transmission) |
1 | |
| 15 | 4009760 |
ВИНТ (M12 x 60) SCREW (M12 x 60) |
4 | |
| 16 | 57357 |
ВИНТ (0.437-13 x 2.250) (Down Angle Transmission) SCREW (.437-13 x 2.250) (Down Angle Transmission) |
2 | |
| 16 | 47724 |
ВИНТ (0.437-14 x 3.00) (V-Drive Transmission) SCREW (.437-14 x 3.00) (V-Drive Transmission) |
2 | |
| 17 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 18 | 29553 |
ГАЙКА (0.437-14) NUT (.437-14) |
2 | disc. |
| 19 | 66166A4 |
ЦАПФА TRUNNION |
2 | |
| 2 | 68101 |
ВИНТ (0.375-16 x 1.375) SCREW (.375-16 x 1.375) |
2 | |
| 20 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) LOCKWASHER (.750) |
2 | |
| 21 | 816326A2 |
БАЗА В СБОРЕ Transmission End BASE ASSEMBLY Transmission End |
2 | |
| 22 | 816331 |
ГАЙКА (.750-16) Jam NUT (.750-16) Jam |
2 | |
| 23 | 66658 |
ЛЕПЕСТКОВАЯ ШАЙБА Tab TAB WASHER Tab |
2 | |
| 24 | 20739 |
ГАЙКА (.750-16) Jam NUT (.750-16) Jam |
2 | |
| 25 | 78945 |
J-ОБРАЗНЫЙ ФИКСАТОР Harness Support J CLAMP Harness Support |
1 | |
| 3 | 8M2004610 |
ШПИЛЬКА (3/16-16 x 2.25) STUD (3/16-16 x 2.25) |
4 | |
| 4 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
4 | |
| 5 | 37269 |
ВИНТ (0.437-14 x 2.00) SCREW (.437-14 x 2.00) |
2 | |
| 6 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 7 | 29553 |
ГАЙКА (0.437-14) NUT (.437-14) |
2 | disc. |
| 8 | 66166A4 |
ЦАПФА TRUNNION |
2 | |
| 9 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) LOCKWASHER (.750) |
2 |
