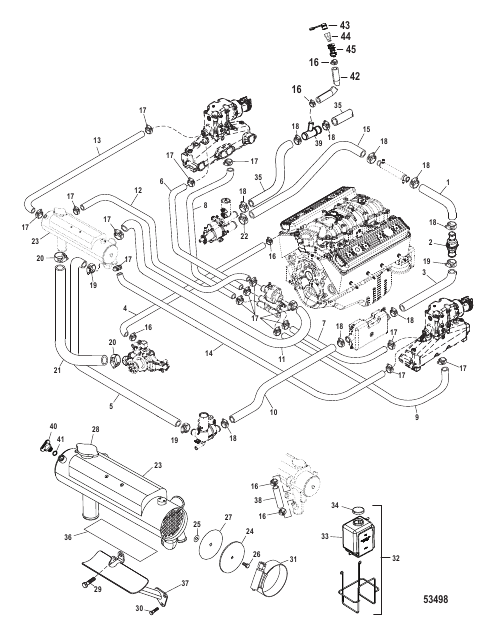

CLOSED COOLING SYSTEM
Parts (57)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863489 |
РУКАВ Tansmission Cooler to Check Valve HOSE Tansmission Cooler to Check Valve |
1 | |
| 10 | 863670 |
РУКАВ Fuel Cooler to Accumulator Housing HOSE Fuel Cooler to Accumulator Housing |
1 | |
| 11 | 864506 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 12 | 864507 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 13 | 8M2005027 |
РУКАВ Heat Exchanger to Starboard Elbow (INLINE)(3 In. Risers and No Risers) HOSE Heat Exchanger to Starboard Elbow (INLINE)(3 In. Risers and No Risers) |
1 | |
| 13 | 864955 |
РУКАВ Heat Exchanger to Starboard Elbow (INLINE)(6 In. Risers) HOSE Heat Exchanger to Starboard Elbow (INLINE)(6 In. Risers) |
1 | discontinued |
| 13 | 864544 |
РУКАВ Heat Exchanger to Starboard Elbow (V-DRIVE)(Without Risers) HOSE Heat Exchanger to Starboard Elbow (V-DRIVE)(Without Risers) |
1 | |
| 13 | 864544 |
РУКАВ Heat Exchanger to Starboard Elbow (V-DRIVE)(3 In. Risers) HOSE Heat Exchanger to Starboard Elbow (V-DRIVE)(3 In. Risers) |
1 | |
| 13 | 864974 |
РУКАВ Heat Exchanger to Starboard Elbow (V-DRIVE)(6 In. Risers) HOSE Heat Exchanger to Starboard Elbow (V-DRIVE)(6 In. Risers) |
1 | |
| 14 | 864726 |
РУКАВ Heat Exchanger to Port Elbow (INLINE)(3 In. Risers and No Risers) HOSE Heat Exchanger to Port Elbow (INLINE)(3 In. Risers and No Risers) |
1 | |
| 14 | 864953 |
РУКАВ Heat Exchanger to Port Elbow (INLINE)(6 In. Risers) HOSE Heat Exchanger to Port Elbow (INLINE)(6 In. Risers) |
1 | discontinued |
| 14 | 864543 |
РУКАВ Heat Exchanger to Port Elbow (V-DRIVE)(Without Risers) HOSE Heat Exchanger to Port Elbow (V-DRIVE)(Without Risers) |
1 | |
| 14 | 864543 |
РУКАВ Heat Exchanger to Port Elbow (V-DRIVE)(3 In. Risers) HOSE Heat Exchanger to Port Elbow (V-DRIVE)(3 In. Risers) |
1 | |
| 14 | 864973 |
РУКАВ Heat Exchanger to Port Elbow (V-DRIVE)(6 In. Risers) HOSE Heat Exchanger to Port Elbow (V-DRIVE)(6 In. Risers) |
1 | |
| 15 | 863611 |
РУКАВ Sea Pump to Trans Cooler HOSE Sea Pump to Trans Cooler |
1 | |
| 16 | 815504212 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
3 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
1 | |
| 18 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
1 | superseded |
| 19 | 815504228 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 2 | 864206A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 20 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
1 | |
| 21 | 864886 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | |
| 22 | 815504220 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 23 | 864395T01 |
ТЕПЛООБМЕННИК HEAT EXCHANGER |
1 | |
| 24 | 864708 |
КРЫШКА End, Heat Exchanger COVER End Cap End, Heat Exchanger |
2 | |
| 25 | 818679 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 26 | 94247 |
ВИНТ (0.375-16 x 0.750), нержавеющая сталь SCREW (.375-16 x .750) Stainless Steel |
2 | |
| 27 | 866152 |
УПЛОТНЕНИЕ End Cover SEAL End Cover |
2 | superseded |
| 28 | 8148791 |
ПРОБКА Pressure CAP Pressure |
1 | |
| 29 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
1 | |
| 3 | 863623 |
РУКАВ Check Valve to Fuel Cooler HOSE Check Valve to Fuel Cooler |
1 | |
| 30 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
3 | |
| 31 | 815504396 |
ЗАЖИМ Червячная передача Heat Exchanger CLAMP Worm Gear Heat Exchanger |
1 | |
| 32 | 71587A10 |
КОМПЛЕКТ ДЛЯ ВОССТАНОВЛЕНИЯ Охлаждающая жидкость RECOVERY KIT Coolant |
1 | |
| 33 | 71587A11 |
БАЧОК Пластик Coolant Recovery Kit BOTTLE Plastic Coolant Recovery Kit |
1 | |
| 34 | 72058 |
ПРОБКА Coolant Recovery Bottle CAP Bottle Coolant Recovery Bottle |
1 | |
| 35 | 8M0062666 |
РУКАВ (Общая длина 96.00") Sea Water Pump to Water Pick UP HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick UP |
1 | |
| 36 | 18431 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
1 | |
| 37 | 864429T |
КРОНШТЕЙН Cooler BRACKET Cooler |
1 | |
| 38 | 864533 |
РУКАВ HOSE |
1 | superseded |
| 39 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга Drain FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb Drain |
1 | |
| 4 | 864551 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 40 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 41 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 42 | 8M0062634 |
РУКАВ Общая длина 44.00" (Cut to fit) HOSE 44.00 inch Bulk (Cut to fit) |
1 | |
| 43 | 858240 |
ПРОБКА CAP Tethered |
1 | |
| 44 | 857175 |
СОЕДИНИТЕЛЬНАЯ ВСТАВКА COUPLING INSERT |
1 | |
| 45 | 861406 |
ГНЕЗДО SOCKET |
1 | |
| 5 | 864431 |
РУКАВ Distribution Fitting to Heat Exchanger HOSE Distribution Fitting to Heat Exchanger |
1 | |
| 6 | 864539 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard)(Without Risers) HOSE Thermostat Housing to Upper Manifold (Starboard)(Without Risers) |
1 | |
| 6 | 864956 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard)(With Risers) HOSE Thermostat Housing to Upper Manifold (Starboard)(With Risers) |
1 | |
| 7 | 864552 |
РУКАВ Thermostat Housing to Upper Manifold (Port)(Without Risers) HOSE Thermostat Housing to Upper Manifold (Port)(Without Risers) |
1 | |
| 7 | 864954 |
РУКАВ Thermostat Housing to Upper Manifold (Port)(With Risers) HOSE Thermostat Housing to Upper Manifold (Port)(With Risers) |
1 | |
| 8 | 864509 |
РУКАВ HOSE |
1 | |
| 9 | 864508 |
РУКАВ Port Manifold Drain HOSE Port Manifold Drain |
1 | |
| NS | 774572 |
РУКАВ (Общая длина 48.00") HOSE (48.00 Inches Bulk) |
1 | |
| NS | 8M0074364 |
ПРОБКА Hose Clamp End COVER Hose Clamp Hose Clamp End |
A/R |
