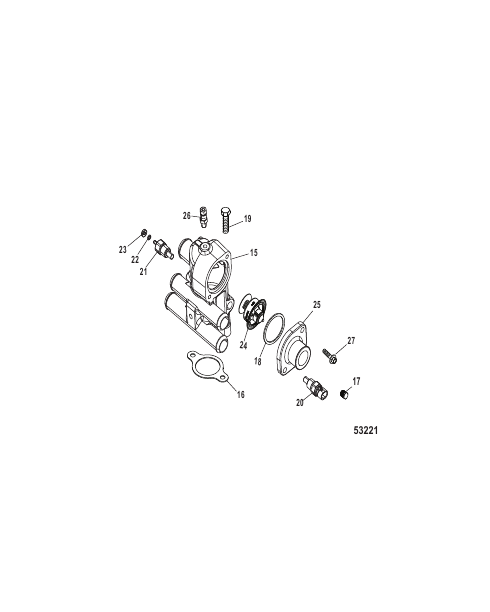

THERMOSTAT AND HOUSING
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 15 | 864398T1 |
КОРПУС В СБОРЕ Термостат HOUSING ASSEMBLY Thermostat |
1 | |
| 16 | 530451 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
2 | |
| 17 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 18 | 8071341 |
УПЛОТНЕНИЕ Thermostat SEAL Thermostat Thermostat |
1 | |
| 19 | 40011151 |
ВИНТ (M8 x 35), нержавеющая сталь SCREW (M8 x 35) Stainless Steel |
2 | |
| 20 | 805218T |
ДАТЧИК Temperature SENSOR Temperature |
1 | |
| 21 | 806490T |
ДАТЧИК Temperature SENDER Temperature |
1 | |
| 22 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 23 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 24 | 864493 |
ТЕРМОСТАТ 77°C (170°F) 170 Degree Fahrenheit THERMOSTAT 77°C (170°F) 170 Degree Fahrenheit |
1 | |
| 25 | 807075A1 |
КРЫШКА Thermostat Housing COVER Thermostat Thermostat Housing |
1 | |
| 26 | 818390 |
КРАН СЛИВА DRAIN COCK |
1 | |
| 27 | 29198 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.875) SCREW AND LOCKWASHER (.312-18 x .875) |
2 | |
| NS | 863874 |
РУКАВ Вода SLEEVE Water |
1 |
