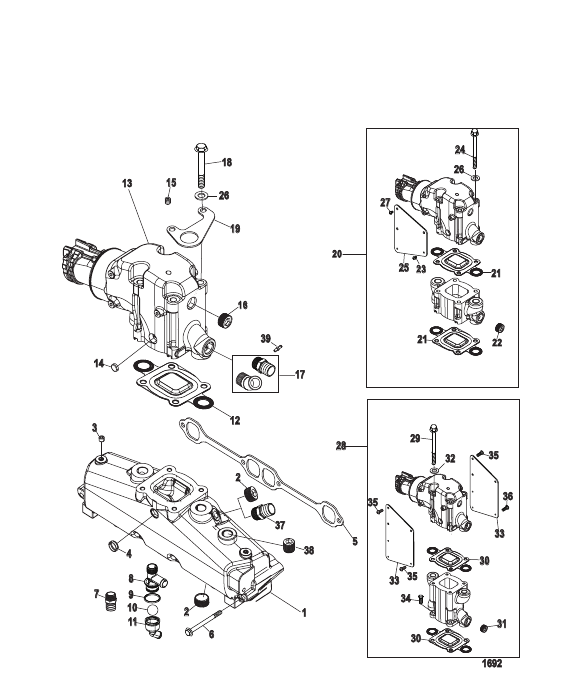

EXHAUST MANIFOLD AND ELBOW
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 865735A02 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп MANIFOLD ASSEMBLY Exhaust |
2 | superseded |
| 12 | 864549A02 |
ПРОКЛАДКА Elbow(Block Off) GASKET Elbow(Block Off) |
2 | |
| 13 | 864591T02 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Exhaust ELBOW ASSEMBLY Exhaust |
2 | |
| 14 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
3 | |
| 15 | 73379 |
ПРОБКА (.250-18) PLUG (.250-18) |
AR | superseded |
| 16 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 17 | 864623A1 |
ФИТИНГИ В СБОРЕ Barb (With Tapped Fitting) FITTING ASSEMBLY Barb (With Tapped Fitting) |
1 | |
| 17 | 865159 |
ФИТИНГ 45 градусов FITTING 45 Degree |
1 | |
| 18 | 864665 |
ВИНТ (0.375-16 x 7.50) SCREW (.375-16 x 7.50) |
8 | |
| 19 | 864263 |
КРОНШТЕЙН Flushing Attatchment BRACKET Flushing Attatchment |
1 | |
| 2 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
8 | superseded |
| 20 | 864929A4 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (3 In. Warm Riser) RISER EXTENSION KIT (3 In. Warm Riser) |
1 | |
| 21 | 864549A02 |
ПРОКЛАДКА Block Off GASKET Block Off |
2 | |
| 21 | 864547A02 |
ПРОКЛАДКА Full Flow (With Risers Only) GASKET Full Flow (With Risers Only) |
2 | |
| 22 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
2 | |
| 23 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 24 | 864702 |
БОЛТ (0.375-16 x 10.500) BOLT (.375-16 x 10.500) |
8 | discontinued |
| 25 | 863714T01 |
КРОНШТЕЙН ECM Mounting BRACKET ECM Mounting |
1 | |
| 26 | 34714 |
ШАЙБА WASHER |
8 | |
| 27 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
1 | |
| 28 | 864908A2 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (6 In. Warm Riser) RISER EXTENSION KIT (6 In. Warm Riser) |
1 | |
| 29 | 864665 |
ВИНТ (0.375-16 x 7.50) SCREW (.375-16 x 7.50) |
8 | |
| 3 | 390721 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
2 | |
| 30 | 864549A02 |
ПРОКЛАДКА Block Off GASKET Block Off |
2 | |
| 30 | 864547A02 |
ПРОКЛАДКА Full Flow (With Risers Only) GASKET Full Flow (With Risers Only) |
2 | |
| 31 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 32 | 34714 |
ШАЙБА WASHER |
8 | |
| 33 | 863715T01 |
КРОНШТЕЙН ECM Mounting BRACKET ECM Mounting |
2 | |
| 34 | 865982005 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
8 | |
| 35 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
6 | |
| 36 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 37 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
1 | |
| 38 | 384071 |
ФИТИНГ (1/2-14) FITTING (1/2-14) |
2 | |
| 38 | 12524 |
ПРОБКА (0.375-18 x 0.475), латунь PLUG (.375-18 x .475) Brass |
2 | |
| 39 | 16604 |
ФИТИНГ Прямой (0.125-27) Barb FITTING Straight (.125-27) Barb |
1 | |
| 4 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
3 | |
| 5 | 33395 |
ПРОКЛАДКА GASKET |
2 | |
| 6 | 53728 |
ВИНТ (0.375-16 x 4.75) SCREW (.375-16 x 4.75) |
8 | superseded |
| 7 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
2 |
