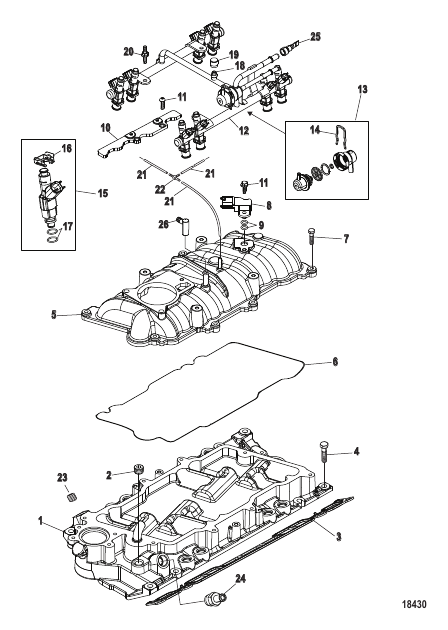

INTAKE MANIFOLD AND FUEL RAIL
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 8M0083536 |
КОЛЛЕКТОР Впуск Lower Injector Bore I.D. 14 mm MANIFOLD Intake Lower Injector Bore I.D. 14 mm |
1 | discontinued |
| 1 | 885164001 |
КОЛЛЕКТОР Впуск Injector Bore I.D. 15 mm MANIFOLD Intake Injector Bore I.D. 15 mm |
1 | superseded |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bracket (Component of 8M0083536) NOT SOLD SEPARATE Bracket (Component of 8M0083536) |
1 | |
| 11 | 885180 |
ВИНТ SCREW |
4 | |
| 12 | 8M0070997 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ В СБОРЕ FUEL RAIL ASSEMBLY |
1 | discontinued |
| 13 | 885174 |
РЕГУЛЯТОР Fuel Pressure REGULATOR Fuel Pressure |
1 | |
| 14 | 885175 |
ЗАЖИМ Fuel Pressure Regulator Retaining CLIP Fuel Pressure Regulator Retaining |
1 | discontinued |
| 15 | 885176 |
ФОРСУНКА Injector Bore I.D. 14 mm INJECTOR Injector Bore I.D. 14 mm |
8 | |
| 15 | 879312003 |
ФОРСУНКА Injector Bore I.D. 15 mm INJECTOR Injector Bore I.D. 15 mm |
8 | |
| 16 | 885177 |
ФИКСАТОР Injector RETAINER Injector |
1 | superseded |
| 17 | 892609 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА Ring Kit Injector Bore I.D. 14 mm O-RING KIT Ring Kit Injector Bore I.D. 14 mm |
1 | discontinued |
| 17 | 8M0046869 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА Injector Bore I.D. 15 mm O-RING KIT Injector Bore I.D. 15 mm |
1 | |
| 18 | 885178 |
КЛАПАН Fuel Pressure Service VALVE Fuel Pressure Service |
1 | |
| 19 | 885179 |
ПРОБКА Fuel Pressure Service Valve CAP Fuel Pressure Service Valve |
1 | |
| 2 | 12524 |
ПРОБКА (0.375-18 x 0.475), латунь PLUG (.375-18 x .475) Brass |
1 | |
| 20 | 885180 |
ВИНТ SCREW |
4 | |
| 21 | 8M0063567 |
РУКАВ Общая длина 58.00" (Cut to Appropriate Length) HOSE 58.00 inch Bulk (Cut to Appropriate Length) |
2 | |
| 22 | 806689 |
ФИТИНГ Тройник FITTING Tee |
1 | |
| 23 | 384071 |
ФИТИНГ (1/2-14) FITTING (1/2-14) |
1 | |
| 24 | 863426 |
ФИТИНГ Пробка EGR (.875-14) FITTING EGR Plug (.875-14) |
1 | |
| 24 | 47841 |
ФИТИНГ (0.375-18 x 0.500) FITTING (.375-18 x .500 ) |
1 | superseded |
| 25 | 8623601 |
ПРОБКА Fuel Rail Block Off PLUG Fuel Rail Block Off |
1 | |
| 26 | 863432T |
ФИТИНГ 90 Degree Vent FITTING 90 Degree Vent |
1 | |
| 3 | 807473A1 |
КОМПЛЕКТ ПРОКЛАДОК Intake Manifold GASKET SET Intake Manifold |
1 | |
| 4 | 808010 |
ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375) |
8 | superseded |
| 5 | 885167 |
КОЛЛЕКТОР Впуск Upper MANIFOLD Intake Upper |
1 | superseded |
| 6 | 885168 |
ПРОКЛАДКА Intake Manifold GASKET Intake Manifold |
1 | superseded |
| 7 | 885166 |
ВИНТ SCREW |
13 | |
| 8 | 885165 |
ДАТЧИК (Temperature and Pressure) SENSOR (Temperature and Pressure) |
1 | superseded |
| 9 | 881733 |
УПЛОТНЕНИЕ SEAL |
2 |
