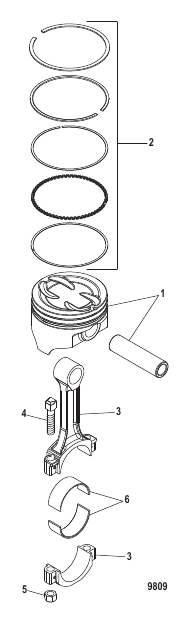

Piston and Connecting Rods
Parts (7)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Piston Assembly Obtain Locally NOT SOLD SEPARATE Piston Assembly Obtain Locally |
4 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Ring Set Obtain Locally NOT SOLD SEPARATE Ring Set Obtain Locally |
4 | |
| 3 | 8164T |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
4 | |
| 4 | 85802 |
ВИНТ (0.375-24 x специальн.) SCREW (.375-24 x Special) |
8 | discontinued |
| 5 | 37493 |
ГАЙКА (.375-24) NUT (.375-24) |
8 | |
| 6 | 804982 |
НАБОР ПОДШИПНИКОВ Standard BEARING SET Standard |
4 | |
| 6 | 804982001 |
НАБОР ПОДШИПНИКОВ (.001) Oversize BEARING SET (.001) Oversize |
AR |
