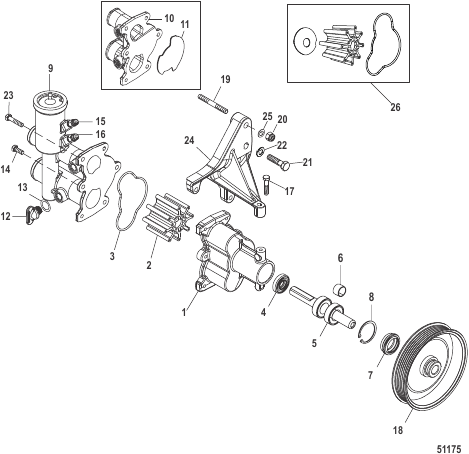

Sea Water Pump Assembly
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0137216 |
НАСОС ДЛЯ ЗАБОРТНОЙ ВОДЫ В СБОРЕ Without Air Fittings SEA PUMP ASSEMBLY Without Air Fittings |
1 | superseded |
| - | 8M0137217 |
КОМПЛЕКТ НАСОСА Забортная вода With Air Fittings PUMP KIT Sea Water With Air Fittings |
1 | superseded |
| - | 8M0050018 |
КОМПЛЕКТ ВЕДУЩЕГО ВАЛА В СБОРЕ DRIVESHAFT ASSEMBLY KIT |
1 | superseded |
| 1 | 8M0118062 |
КОРПУС В СБОРЕ Крыльчатка HOUSING ASSEMBLY Impeller |
1 | superseded |
| 10 | 862776A01 |
КОМПЛЕКТ КРЫШЕК Корпус крыльчатки Without Air Fittings COVER KIT Impeller Housing Without Air Fittings |
1 | |
| 11 | 8M2014176 |
ПЛАСТИНА Wear PLATE Wear |
1 | superseded |
| 12 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
2 | |
| 13 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
2 | |
| 14 | 4000328 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
6 | superseded |
| 15 | 8M0082319 |
ФИТИНГ Серый – прямой Male Air (.1562) Component of 46-8M0137217 FITTING Gray - Straight Male Air (.1562) Component of 46-8M0137217 |
1 | |
| 16 | 8M0082320 |
ФИТИНГ Оранжевый – прямой Male Air (.1875) Component of 46-8M0137217 FITTING Orange - Straight Male Air (.1875) Component of 46-8M0137217 |
1 | |
| 17 | 4000331 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
1 | |
| 18 | 862351T |
ШКИВ PULLEY |
1 | superseded |
| 19 | 863853 |
ШПИЛЬКА STUD |
2 | |
| 2 | 8M0104229 |
КОМПЛЕКТ КРЫЛЬЧАТОК See Service Bulletin 2016-09R1 IMPELLER KIT See Service Bulletin 2016-09R1 |
1 | |
| 20 | 82671112 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 21 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 22 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 23 | 4000331 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
2 | |
| 24 | 865143T01 |
КРОНШТЕЙН Sea Water Pump BRACKET Sea Water Pump |
1 | |
| 25 | 38622 |
ШАЙБА (0.391 x 1.00 x 0.125) WASHER (.391 x 1.00 x .125) |
1 | discontinued |
| 26 | 8M0137219 |
IMPELLER KIT Heavy Duty See Service Bulletin 2016-09R1 IMPELLER KIT Heavy Duty See Service Bulletin 2016-09R1 |
1 | |
| 3 | 8M2021987 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Образованное Also included with Reference 8 and 9 O-RING Formed Also included with Reference 8 and 9 |
1 | superseded |
| 4 | 8M2001645 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | superseded |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО DRIVESHAFT ASSEMBLY NOT SOLD SEPARATE DRIVESHAFT ASSEMBLY |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPACER NOT SOLD SEPARATE SPACER |
1 | |
| 7 | 862040 |
УПЛОТНЕНИЕ Lip SEAL Lip |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SNAP RING NOT SOLD SEPARATE SNAP RING |
1 | |
| 9 | 863674A05 |
КОМПЛЕКТ КРЫШЕК Корпус крыльчатки With Air Fittings COVER KIT Impeller Housing With Air Fittings |
1 |
