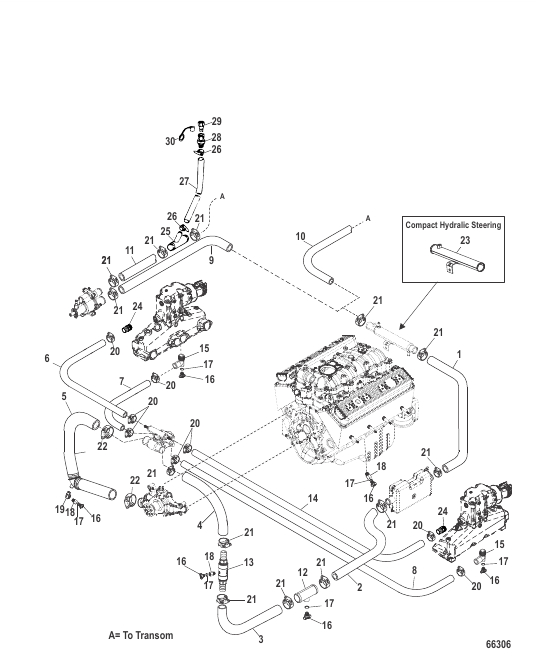

Standard Cooling System (7 Point Drain)
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8600891 |
РУКАВ Литой Power Steering to Fuel Cooler HOSE Molded Power Steering to Fuel Cooler |
1 | |
| 10 | 807661 |
РУКАВ (Alpha) HOSE (Alpha) |
1 | |
| 11 | 8M0062666 |
РУКАВ (Общая длина 96.00") Transom Assembly to Power Steering Cooler (Bravo) HOSE (96.00 Inches Bulk) Transom Assembly to Power Steering Cooler (Bravo) |
1 | |
| 12 | 861505 |
ФИТИНГ Drain Tee FITTING Drain Tee |
1 | |
| 13 | 862271A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 14 | 864435 |
РУКАВ Port Exhaust Elbow to Thermostat Housing HOSE Port Exhaust Elbow to Thermostat Housing |
1 | |
| 15 | 862210A01 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив ELBOW KIT Drain |
2 | |
| 16 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
9 | |
| 17 | 32509 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070) O-RING (.489 x .070) |
9 | |
| 18 | 860088 |
ВТУЛКА BUSHING |
4 | superseded |
| 19 | 46982 |
ФИТИНГ (90 градусов) 90 Degress FITTING (90 Degree) 90 Degress |
1 | |
| 2 | 866331 |
РУКАВ Fuel Cooler to Drain Fitting (Cut to Length) HOSE Fuel Cooler to Drain Fitting (Cut to Length) |
1 | |
| 20 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
4 | |
| 21 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
13 | superseded |
| 22 | 815504228 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
4 | |
| 23 | 863841T |
ТРУБА Вода Brass (Compact Hydralic Steering) TUBE Water Brass (Compact Hydralic Steering) |
1 | |
| 24 | 866725 |
ФИТИНГ Прямой (0.750-14) Barb FITTING Straight (.750-14) Barb |
1 | |
| 25 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 | |
| 26 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 27 | 8M0062634 |
РУКАВ Общая длина 44.00" HOSE 44.00 inch Bulk |
1 | |
| 28 | 861406 |
ГНЕЗДО SOCKET |
1 | |
| 29 | 857175 |
СОЕДИНИТЕЛЬНАЯ ВСТАВКА COUPLING INSERT |
1 | |
| 3 | 864578 |
РУКАВ Drain Fitting to Check Valve HOSE Drain Fitting to Check Valve |
1 | |
| 30 | 858240 |
ПРОБКА CAP Tethered |
1 | |
| 4 | 864579 |
РУКАВ Check Valve to Thermostat Housing HOSE Check Valve to Thermostat Housing |
1 | |
| 5 | 864703A1 |
РУКАВ Circulating Pump to Drain Elbow HOSE Circulating Pump to Drain Elbow |
1 | |
| 6 | 864979 |
РУКАВ Starboard Exhaust Elbow to Thermostat Housing HOSE Starboard Exhaust Elbow to Thermostat Housing |
1 | |
| 7 | 863459 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 8 | 863458 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 | |
| 9 | 863611 |
РУКАВ Sea Water Pump to Power Steering Cooler (Bravo) HOSE Sea Water Pump to Power Steering Cooler (Bravo) |
1 |
