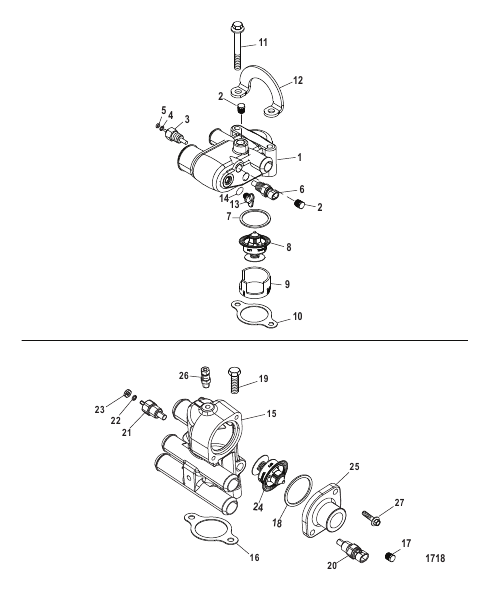

Thermostat and Housing (Single and 3 Point Drain)
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 863457A2 |
КОРПУС В СБОРЕ Термостат HOUSING ASSEMBLY Thermostat |
1 | |
| 10 | 530451 |
ПРОКЛАДКА Lower Thermostat Housing GASKET Lower Thermostat Housing |
1 | |
| 11 | 4010775 |
ВИНТ (M8 x 75) SCREW (M8 x 75) |
2 | |
| 12 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 13 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 14 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 15 | 864398T1 |
КОРПУС В СБОРЕ Термостат HOUSING ASSEMBLY Thermostat |
1 | |
| 16 | 530451 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
1 | |
| 17 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 18 | 8071341 |
УПЛОТНЕНИЕ Thermostat SEAL Thermostat Thermostat |
1 | |
| 19 | 40011151 |
ВИНТ (M8 x 35), нержавеющая сталь SCREW (M8 x 35) Stainless Steel |
2 | |
| 2 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 20 | 805218T |
ДАТЧИК SENSOR |
1 | |
| 21 | 806490T |
ДАТЧИК Temperature SENDER Temperature |
1 | |
| 21 | 49734 |
ДАТЧИК Temperature (Dual Station) SENDER Temperature (Dual Station) |
OPT | |
| 22 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 23 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 24 | 864493 |
ТЕРМОСТАТ 77°C (170°F) THERMOSTAT 77°C (170°F) |
1 | |
| 25 | 807075A1 |
КРЫШКА Thermostat Housing COVER Thermostat Thermostat Housing |
1 | |
| 26 | 818390 |
КРАН СЛИВА DRAIN COCK |
1 | |
| 27 | 29198 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.875) SCREW AND LOCKWASHER (.312-18 x .875) |
2 | |
| 3 | 806490T |
ДАТЧИК Water Temperature SENDER Water Temperature |
1 | |
| 3 | 49734 |
ДАТЧИК Water Temperature (Dual Station) SENDER Water Temperature (Dual Station) |
OPT | |
| 4 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 5 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 6 | 805218T |
ДАТЧИК SENSOR |
1 | |
| 7 | 806871 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
1 | superseded |
| 8 | 8M0109441 |
ТЕРМОСТАТ 71 °C (160 °F) THERMOSTAT 71Degree C (160 Degree F) |
1 | |
| 9 | 806922 |
РУКАВ Thermostat SLEEVE Thermostat |
1 | superseded |
