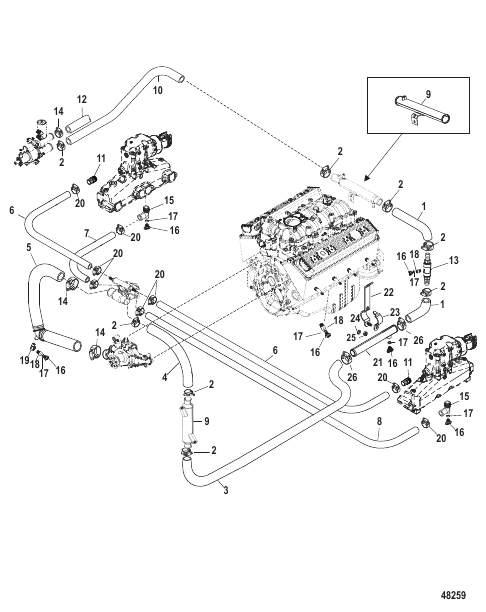

Standard Cooling System 383 Mag Bravo 4V
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8600891 |
РУКАВ Литой Power Steering to Fuel Cooler (Cut into 2 Pieces) HOSE Molded Power Steering to Fuel Cooler (Cut into 2 Pieces) |
1 | |
| 10 | 863611 |
РУКАВ Seawater Pump to Steering Cooler HOSE Seawater Pump to Steering Cooler |
1 | |
| 11 | 866725 |
ФИТИНГ Прямой (0.750-14) Barb FITTING Straight (.750-14) Barb |
2 | |
| 12 | 865672079 |
РУКАВ (Общая длина 96.00") HOSE (96.00 Inches Bulk) |
1 | superseded |
| 13 | 862271A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 14 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
4 | superseded |
| 15 | 862210A01 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив ELBOW KIT Drain |
3 | |
| 16 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
6 | superseded |
| 17 | 8M2000926 |
УПЛОТНЕНИЕ SEAL |
6 | superseded |
| 18 | 860088 |
ВТУЛКА BUSHING |
3 | superseded |
| 19 | 46982 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 2 | 8M2001489 |
ЗАЖИМ (32-50 мм) CLAMP (32 - 50 mm) |
10 | superseded |
| 20 | 8M2001487 |
ЗАЖИМ (25-40 мм) CLAMP (25 - 40 mm) |
5 | superseded |
| 21 | 860315A1 |
ТРУБА TUBE |
1 | |
| 22 | 860418T |
КРОНШТЕЙН BRACKET |
1 | |
| 23 | 860417T |
ЗАЖИМ CLAMP |
1 | |
| 24 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
1 | |
| 25 | 8267088 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 26 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter) |
2 | superseded |
| 3 | 864578 |
РУКАВ Drain Fitting to Check Valve HOSE Drain Fitting to Check Valve |
1 | |
| 4 | 864579 |
РУКАВ Check Valve to Thermostat Housing HOSE Check Valve to Thermostat Housing |
1 | |
| 5 | 864703A1 |
РУКАВ Circulating Pump to Drain Elbow HOSE Circulating Pump to Drain Elbow |
1 | |
| 6 | 3322070 |
РУКАВ (Общая длина 48.00") Cut into 2 Pieces 1-Port/1-Starboard HOSE (48.00 Inches Bulk) Cut into 2 Pieces 1-Port/1-Starboard |
1 | superseded |
| 7 | 863459 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 8 | 863458 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 | |
| 9 | 807371T1 |
ОХЛАДИТЕЛЬ Масло COOLER Oil |
1 |
