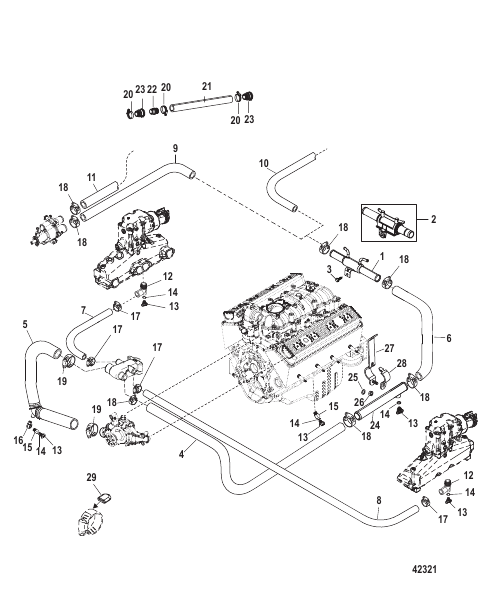

Standard Cooling System 357 Alpha/Bravo
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 861554T01 |
ОХЛАДИТЕЛЬ Power Steering (Metal) COOLER Power Steering (Metal) |
1 | superseded |
| 10 | 807661 |
РУКАВ Transom Assembly to Power Steering Cooler Alpha HOSE Transom Assembly to Power Steering Cooler Alpha |
1 | |
| 11 | 86334379 |
РУКАВ (Общая длина 96.00") Transom Water Pick Up To Sea Water Pump (36 IN.) HOSE (96.00 Inches Bulk) Transom Water Pick Up To Sea Water Pump (36 IN.) |
1 | superseded |
| 12 | 862210A01 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив ELBOW KIT Drain |
2 | |
| 13 | 806608A1 |
Комплект пробки (0.500-13), королевский синий PLUG KIT (.500-13) Royal Blue |
AR | superseded |
| 14 | 62706 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.426 x 0.070) O-RING (.426 x .070) |
AR | |
| 15 | 860088 |
ВТУЛКА BUSHING |
2 | superseded |
| 16 | 46982 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
4 | |
| 18 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
7 | superseded |
| 19 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
2 | |
| 2 | 861554T02 |
ОХЛАДИТЕЛЬ Power Steering (Composite) COOLER Power Steering (Composite) |
1 | discontinued |
| 20 | 815504220 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
3 | |
| 21 | 865672013 |
РУКАВ (4.00") HOSE (4.00 Inches) |
1 | superseded |
| 22 | 865362 |
БЫСТРОРАЗЪЕМНЫЙ QUICK CONNECT |
1 | |
| 23 | 865324 |
БЫСТРОРАЗЪЕМНЫЙ QUICK CONNECT |
2 | |
| 24 | 860315A1 |
ТРУБА TUBE |
1 | |
| 25 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
1 | |
| 26 | 8267088 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 27 | 860418T |
КРОНШТЕЙН BRACKET |
1 | |
| 28 | 860417T |
ЗАЖИМ CLAMP |
1 | |
| 29 | 8079923 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
AR | superseded |
| 3 | 816585 |
ВИНТ (0.312-18 x 0.875) Metal Cooler SCREW (.312-18 x .875) Metal Cooler |
1 | |
| 3 | 8M2016106 |
ВИНТ (0.312 x 1.25) Composite Cooler (Included with 861554T02) SCREW (.312 x 1.25) Composite Cooler (Included with 861554T02) |
1 | discontinued |
| 4 | 808033 |
РУКАВ Литой Power Steering Cooler to Thermostat Housing HOSE Molded Power Steering Cooler to Thermostat Housing |
1 | |
| 5 | 861590A05 |
ШЛАНГ В СБОРЕ Circulating Pump to Thermostat Housing HOSE ASSEMBLY Circulating Pump to Thermostat Housing |
1 | |
| 6 | 8600891 |
РУКАВ Литой Extension Tube to Power Steering HOSE Molded Extension Tube to Power Steering |
1 | |
| 7 | 807697 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 8 | 860144 |
РУКАВ Корпус термостата к выхлопному коллектору по левому борту Thermostat Housing to Port Exhaust Manifold HOSE Thermostat Housing To Port Exhaust Manifold Thermostat Housing to Port Exhaust Manifold |
1 | |
| 9 | 8080441 |
РУКАВ Литой Sea Water Pump To Power Stering Cooler Bravo HOSE Molded Sea Water Pump To Power Stering Cooler Bravo |
1 |
