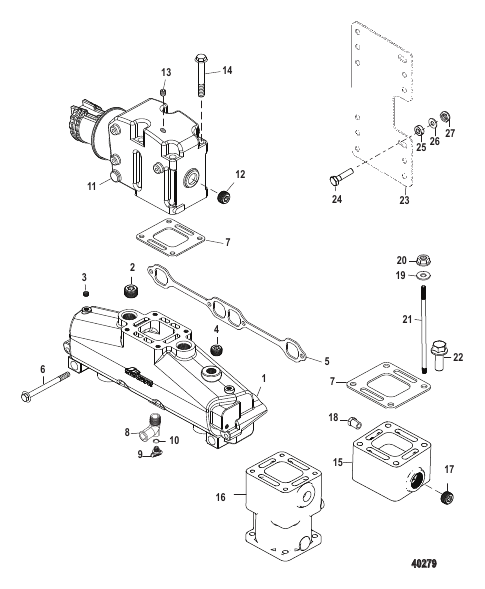

Exhaust Manifold And Exhaust Elbow 357 Alpha/Bravo
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A05 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 860246A15 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Port and Starboard MANIFOLD ASSEMBLY Exhaust Port and Starboard |
2 | |
| 10 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
2 | |
| 11 | 807988A03 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Выхлоп ELBOW ASSEMBLY Exhaust |
2 | |
| 12 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 13 | 73379 |
ПРОБКА (.250-18) PLUG (.250-18) |
2 | superseded |
| 14 | 43749 |
ВИНТ (0.375-16 x 5.750) SCREW (.375-16 x 5.750) |
8 | |
| 14 | 43749 |
ВИНТ (0.375-16 x 5.750) (Swiss Emissions (BSO1 And SAV1) SCREW (.375-16 x 5.750) (Swiss Emissions (BSO1 And SAV1) |
4 | |
| 14 | 843504 |
ВИНТ (0.380-16 x 1.500), нержавеющая сталь SCREW (.380-16 x 1.500) Stainless Steel |
4 | |
| 15 | 93320A13 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной (3") RISER KIT Exhaust (3 Inches) |
1 | |
| 16 | 93322A12 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной (6") RISER KIT Exhaust (6 Inches) |
2 | |
| 17 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 18 | 328022 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
2 | |
| 19 | 46132 |
ШАЙБА Three Inch Risers WASHER Three Inch Risers |
8 | |
| 2 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
8 | superseded |
| 20 | 805979 |
ГАЙКА (.375-24) Three Inch Risers NUT (.375-24) Three Inch Risers |
8 | superseded |
| 21 | 8M0022137 |
ШПИЛЬКА (0.375-24 x 9.56) Three Inch Risers STUD (.375-24 x 9.56) Three Inch Risers |
8 | superseded |
| 22 | 865982005 |
ВИНТ (0.375-16 x 1.00) 6 Inch Risers SCREW (.375-16 x 1.00) 6 Inch Risers |
8 | |
| 23 | 818598T |
КРОНШТЕЙН Six Inch Risers BRACKET Six Inch Risers |
1 | |
| 24 | 805733 |
ВИНТ (0.250-28 x 1.00) Six Inch Risers SCREW (.250-28 x 1.00) Six Inch Risers |
6 | |
| 24 | 60300 |
ВИНТ (0.250-28 x 0.750) Six Inch Risers SCREW (.250-28 x .750) Six Inch Risers |
3 | |
| 25 | 92152 |
ПРОСТАВКА (0.27 x 0.75 x 0.38) Six Inch Risers SPACER (.27 x .75 x .38) Six Inch Risers |
3 | superseded |
| 25 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) Six Inch Risers WASHER Phenolic (.27 x .81 x .062) Six Inch Risers |
6 | |
| 26 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь Six Inch Risers WASHER (.2656 x .625 x .0625) Stainless Steel Six Inch Risers |
6 | |
| 27 | 8267139 |
ГАЙКА (0.250-28) Six Inch Risers NUT (.250-28) Six Inch Risers |
6 | |
| 3 | 39072 |
ПРОБКА (1/8", латунь) PLUG (1/8 Inch Brass) |
4 | superseded |
| 4 | 37372 |
ПРОБКА Труба (0.500) PLUG Pipe (.500) |
2 | superseded |
| 5 | 33395 |
ПРОКЛАДКА GASKET |
2 | |
| 6 | 53728 |
ВИНТ (0.375-16 x 4.75) SCREW (.375-16 x 4.75) |
8 | superseded |
| 7 | 863726 |
ПРОКЛАДКА Standard Cooling GASKET Standard Cooling |
2 | |
| 7 | 863726 |
ПРОКЛАДКА Closed Cooling GASKET Closed Cooling |
2 | |
| 8 | 862210A01 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив ELBOW KIT Drain |
2 | |
| 9 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
2 | superseded |
