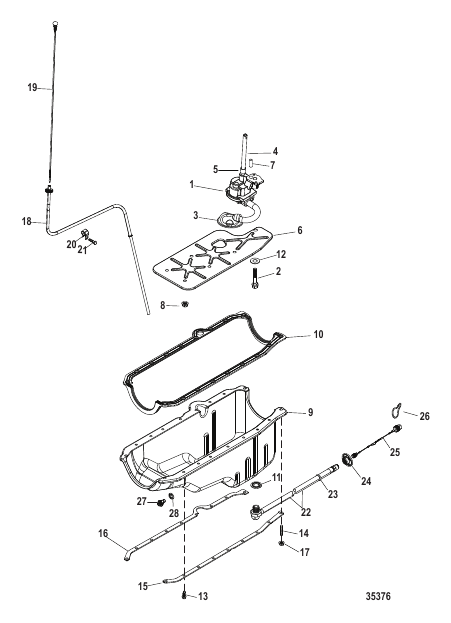

Oil Pan and Oil Pump
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 75611A96 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| - | 807447R03 |
ЛОНГ-БЛОК В СБОРЕ 357 Bravo LONGBLOCK ASSEMBLY 357 Bravo |
1 | discontinued |
| - | 860186R5 |
ЛОНГ-БЛОК В СБОРЕ 357 Alpha LONGBLOCK ASSEMBLY 357 Alpha |
1 | discontinued |
| - | 807447R02 |
ЛОНГ-БЛОК В СБОРЕ 383 Bravo 4V LONG BLOCK ASSEMBLY 383 Bravo 4V |
1 | discontinued |
| 1 | 809907T03 |
НАСОС/ЭКРАН В СБОРЕ Масло PUMP/SCREEN ASSEMBLY Oil |
1 | discontinued |
| 10 | 138651 |
ПРОКЛАДКА Oil Pan GASKET Oil Pan |
1 | superseded |
| 11 | 49955 |
ПРОКЛАДКА Drain Screw GASKET Drain Screw |
1 | superseded |
| 12 | 27339 |
ШАЙБА WASHER |
1 | |
| 13 | 14070 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
14 | |
| 14 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
4 | |
| 15 | 14257 |
АРМАТУРА Port REINFORCEMENT Port |
1 | |
| 16 | 14256 |
АРМАТУРА Starboard REINFORCEMENT Starboard |
1 | |
| 17 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 18 | 862704A4 |
ТРУБА Dipstick TUBE Dipstick |
1 | |
| 19 | 861942T9 |
ЩУП Уровень масла DIPSTICK Oil Level |
1 | |
| 2 | 17346 |
ВИНТ Oil Pump SCREW Oil Pump |
1 | |
| 20 | 805625 |
ЗАЖИМ Dipstick Tube CLIP Dipstick Tube |
1 | |
| 21 | 35366 |
ВИНТ SCREW |
1 | superseded |
| 22 | 865281 |
РУКАВ Oil Drain HOSE Oil Drain |
1 | |
| 23 | 863481 |
ЗАЖИМ Ty Strap CLAMP Ty Strap |
1 | |
| 24 | 862777 |
ФЛАНЕЦ Drain FLANGE Drain |
1 | |
| 25 | 862827 |
ТРОС В СБОРЕ TETHER ASSEMBLY |
1 | |
| 26 | 805524 |
ЗАЖИМ CLIP |
1 | |
| 27 | 49956 |
ВИНТ Слив SCREW Drain |
1 | |
| 28 | 49955 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 3 | 809909 |
ЭКРАН Oil Pump Pick Up SCREEN Oil Pump Pick Up |
1 | |
| 4 | 36184 |
ВАЛ SHAFT |
1 | |
| 5 | 36183 |
ФИКСАТОР RETAINER |
1 | |
| 6 | 986021 |
ОТРАЖАТЕЛЬ Oil DEFLECTOR Oil |
1 | |
| 7 | 843378 |
ШТИФТ Штифт Alignment, Oil Pump PIN Dowel Alignment, Oil Pump |
2 | |
| 8 | 37500 |
ГАЙКА (3/8-16) NUT (3/8-16) |
5 | |
| 9 | 809910 |
ПОДДОН Масло PAN Oil |
1 | superseded |
