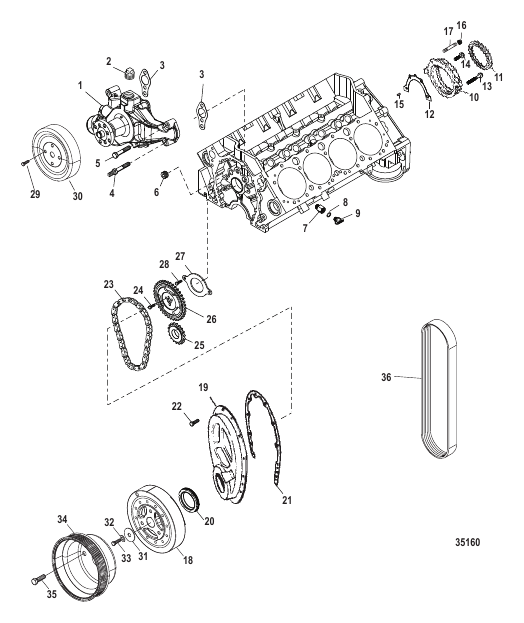

Front Cover and Circulating Pump
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8503991 |
НАСОС В СБОРЕ Вода PUMP ASSEMBLY Water |
1 | superseded |
| 10 | 14239 |
ФИКСАТОР RETAINER |
1 | |
| 11 | 14240 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 12 | 881715 |
ПРОКЛАДКА GASKET |
1 | |
| 13 | 14243 |
БОЛТ (0.250-20 x 1.750) BOLT (.250-20 x 1.750) |
1 | superseded |
| 14 | 14242 |
БОЛТ (0.250-20 x 0.875) BOLT (.250-20 x .875) |
2 | |
| 15 | 14263 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 16 | 8167301 |
ГАЙКА NUT |
1 | superseded |
| 17 | 14827 |
ШПИЛЬКА (0.250-20 x 2.180) STUD (.250-20 x 2.180) |
1 | |
| 18 | 852946001 |
БАЛАНСИР Виброгаситель BALANCER Harmonic |
1 | discontinued |
| 19 | 14249A2 |
КРЫШКА Metal COVER Metal |
1 | superseded |
| 19 | 835005 |
КРЫШКА В СБОРЕ Распределение Plastic TIMING COVER ASSEMBLY Without Crank Position Portal Plastic |
1 | |
| 2 | 49146 |
ПРОБКА PLUG |
1 | discontinued |
| 20 | 97335 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 21 | 14250 |
ПРОКЛАДКА GASKET |
1 | |
| 22 | 35366 |
ВИНТ SCREW |
1 | superseded |
| 23 | 17161T |
ЦЕПЬ CHAIN |
1 | superseded |
| 24 | 845942 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
3 | superseded |
| 25 | 17160 |
ЗВЕЗДОЧКА SPROCKET |
1 | superseded |
| 26 | 8116591 |
ЗВЕЗДОЧКА SPROCKET |
1 | |
| 27 | 845941 |
ФИКСАТОР RETAINER |
1 | |
| 28 | 845943 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 29 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
4 | |
| 3 | 34897 |
ПРОКЛАДКА GASKET |
2 | |
| 30 | 807729T |
ШКИВ PULLEY |
1 | superseded |
| 31 | 71458 |
ШАЙБА WASHER |
1 | |
| 32 | 39131 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 33 | 32515 |
ВИНТ (0.437-20 x 2.50) SCREW (.437-20 x 2.50) |
1 | superseded |
| 34 | 807730T |
ШКИВ PULLEY |
1 | |
| 35 | 34352 |
ВИНТ (0.375-24 x 0.875) SCREW (.375-24 x .875) |
3 | |
| 36 | 861757Q |
РЕМЕНЬ Поликлиновый 357 Bravo BELT Serpentine 357 Bravo |
1 | |
| 36 | 861758Q |
РЕМЕНЬ Поликлиновый 357 Alpha BELT Serpentine 357 Alpha |
1 | |
| 36 | 865615003 |
РЕМЕНЬ 383 Bravo 4V BELT 383 Bravo 4V |
1 | superseded |
| 4 | 35342 |
ШПИЛЬКА (0.312-24/0.375-16 x 2.5625) STUD (.312-24/.375-16 x 2.5625) |
2 | superseded |
| 5 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
2 | |
| 6 | 816565 |
ПРОБКА Колпачок (0.468) PLUG Cup (.468) |
1 | |
| 7 | 860088 |
ВТУЛКА BUSHING |
1 | superseded |
| 8 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
2 | superseded |
| 9 | 8M2000926 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
