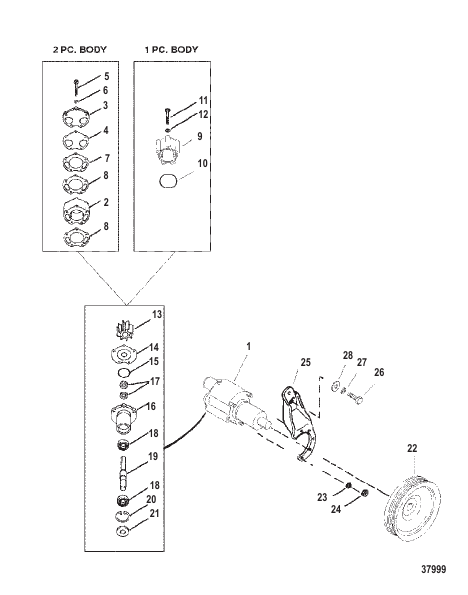

SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 72774A86 |
НАСОС В СБОРЕ Забортная вода – полный (TWO PIECE BODY) PUMP ASSEMBLY Sea Water - Complete (TWO PIECE BODY) |
1 | superseded |
| 1 | 807151A9 |
НАСОС В СБОРЕ Забортная вода (ONE PIECE BODY) PUMP ASSEMBLY Sea Water (ONE PIECE BODY) |
1 | |
| 10 | 807149 |
СЧЕТВЕРЕННОЕ КОЛЬЦО ONE PIECE BODY QUAD RING ONE PIECE BODY |
1 | superseded |
| 11 | 807356 |
ВИНТ (0.312-18 x 2.680) ONE PIECE BODY SCREW (.312-18 x 2.680) ONE PIECE BODY |
2 | superseded |
| 11 | 74191 |
ВИНТ (0.312-18 x 3.250) ONE PIECE BODY SCREW (.312-18 x 3.250) ONE PIECE BODY |
3 | superseded |
| 12 | 814806 |
ШАЙБА (0.344 x 0.688 x 0.065), нержавеющая сталь ONE PIECE BODY WASHER (.344 x .688 x .065) Stainless Steel ONE PIECE BODY |
5 | superseded |
| 13 | 593621 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 14 | 94576 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА (INNER) WEAR PLATE (INNER) |
1 | superseded |
| 15 | 94288 |
СЧЕТВЕРЕННОЕ КОЛЬЦО QUAD RING |
1 | superseded |
| 16 | 94913A5 |
КОРПУС В СБОРЕ Насос HOUSING ASSEMBLY Pump |
1 | |
| 17 | 90562 |
УПЛОТНЕНИЕ (1.254 x 0.312) Oil SEAL (1.254 x .312) Oil |
2 | |
| 18 | 72961 |
ПОДШИПНИК Шарик BEARING Ball |
2 | |
| 19 | 59501A1 |
ВАЛ SHAFT |
1 | |
| 2 | 72774A40 |
КОРПУС В СБОРЕ Забортная вода – полный TWO PIECE BODY BODY ASSEMBLY Sea Water - Complete TWO PIECE BODY |
1 | discontinued |
| 20 | 23720 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 21 | 72785 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | |
| 22 | 807731T |
ШКИВ PULLEY |
1 | superseded |
| 23 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
3 | |
| 24 | 21908 |
ГАЙКА (0.312-18), с кадмиевым покрытием NUT (.312-18) Cad Plated |
3 | |
| 25 | 807749T |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 26 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 27 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 28 | 34714 |
ШАЙБА WASHER |
1 | |
| 3 | 87631A4 |
КОМПЛЕКТ КРЫШЕК TWO PIECE BODY COVER KIT TWO PIECE BODY |
1 | discontinued |
| 4 | 8052151 |
ПРОКЛАДКА TWO PIECE BODY GASKET TWO PIECE BODY |
1 | |
| 5 | 73275 |
ВИНТ (0.312-18 x 2.88) TWO PIECE BODY SCREW (.312-18 x 2.88) TWO PIECE BODY |
2 | |
| 5 | 99347 |
ВИНТ (0.312-18 x 3.75) TWO PIECE BODY SCREW (.312-18 x 3.75) TWO PIECE BODY |
3 | |
| 6 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) TWO PIECE BODY WASHER (.328 x .562 x .062) TWO PIECE BODY |
5 | |
| 7 | 94916 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА (OUTER) TWO PIECE BODY WEAR PLATE (OUTER) TWO PIECE BODY |
1 | |
| 8 | 94914 |
ПРОКЛАДКА TWO PIECE BODY GASKET TWO PIECE BODY |
2 | |
| 9 | 807151A7 |
КОРПУС И КРЫШКА Water Pump ONE PIECE BODY BODY AND COVER Water Pump ONE PIECE BODY |
1 | superseded |
