Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Sterndrive / Engines - Diesel / 2.0L L4 VM / 2.0L ES 170 / [70026630 THRU 70105129] - Cat.# 90-8M0086982 / Engine Mounting Bracket

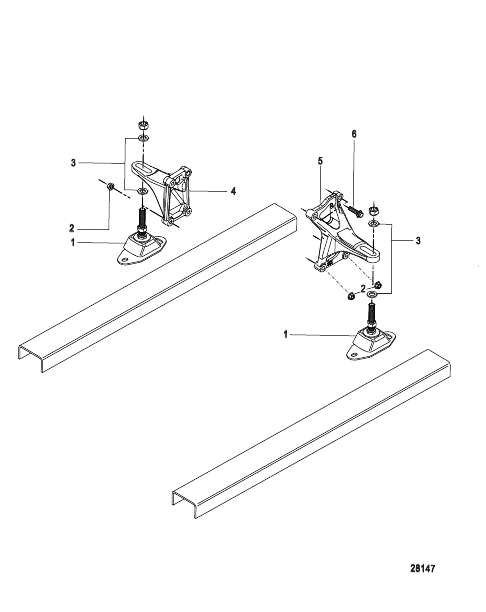

Engine Mounting Bracket

Engine Mounting Bracket

Parts (6)

#Part NumberDescriptionQtyStatus
1 8M0090090 ОПОРА ДВИГАТЕЛЯ
ENGINE MOUNT 		2
2 898101544 ГАЙКА
NUT 		4
3 898101770 ШАЙБА
WASHER 		4
4 898101680 КРОНШТЕЙН
BRACKET 		1
5 898101679 КРОНШТЕЙН
BRACKET 		1
6 898101715 БОЛТ
BOLT 		2
