Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Sterndrive / Engines - Diesel / 2.0L L4 VM / 2.0L ES 130 / [70002130 THRU 70015639] - Cat.# 90-8M0086894 / Engine Mounting Bracket

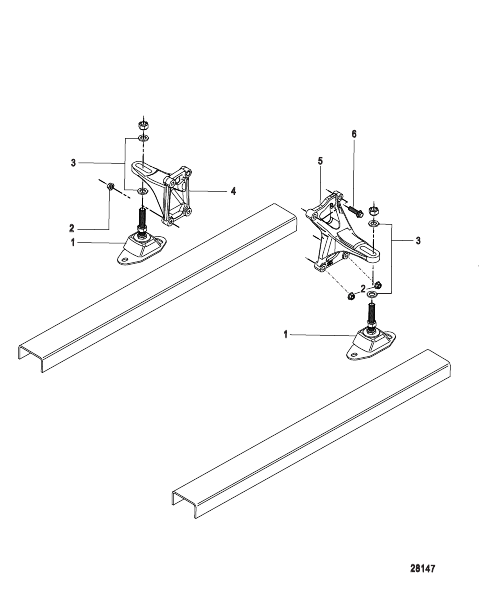

Engine Mounting Bracket

Engine Mounting Bracket

Parts (6)

#Part NumberDescriptionQtyStatus
1 879288286 ОПОРА ДВИГАТЕЛЯ
ENGINE MOUNT 		2 superseded
2 898101544 ГАЙКА
NUT 		4
3 898101770 ШАЙБА
WASHER 		4
4 898101680 КРОНШТЕЙН
BRACKET 		1
5 898101679 КРОНШТЕЙН
BRACKET 		1
6 879172087 ВИНТ
SCREW 		2 discontinued
