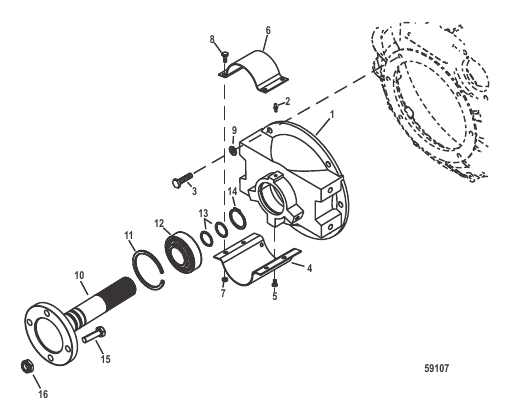

Tailstock Kit
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0106961 |
КОМПЛЕКТ НАТЯЖНОГО УСТРОЙСТВА QSD TAILSTOCK KIT QSD |
1 | |
| 1 | 93911A4 |
КОРПУС В СБОРЕ Опора удлинителя вала HOUSING ASSEMBLY Shaft Extension Support |
1 | |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Tailstock Shaft NOT SOLD SEPARATE Tailstock Shaft |
1 | |
| 11 | 94104 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 12 | 879194A03 |
КОМПЛЕКТ ПОДШИПНИКОВ КАРДАНА GIMBAL BEARING KIT |
1 | |
| 13 | 29845 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.924 x 0.103) O-RING (.924 x .103) |
2 | superseded |
| 14 | 841897T |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 15 | 805159 |
ВИНТ (0.437-20 x 1.500) SCREW (.437-20 x 1.500) |
1 | |
| 16 | 82670815 |
ГАЙКА (0.437-20) NUT (.437-20) |
1 | |
| 2 | 74036 |
ФИТИНГ Смазка (Use with greased bearing) FITTING Grease (Use with greased bearing) |
1 | superseded |
| 2 | 8M2015913 |
ПРОБКА (0.250-28 x 0.320) (Use with non-greased bearing) PLUG (.250-28 x .320) (Use with non-greased bearing) |
1 | superseded |
| 3 | 4000377 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
6 | |
| 4 | 93918A1 |
ЭКРАН Нижняя часть SHIELD Lower |
1 | |
| 5 | 96995 |
ВИНТ (0.375-16 x 0.880) SCREW (.375-16 x .880) |
3 | |
| 6 | 93919A1 |
ЭКРАН Верхняя часть SHIELD Upper |
1 | |
| 7 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
4 | |
| 8 | 96995 |
ВИНТ (0.375-16 x 0.880) SCREW (.375-16 x .880) |
4 | |
| 9 | 4002319 |
ШАЙБА WASHER |
6 |
