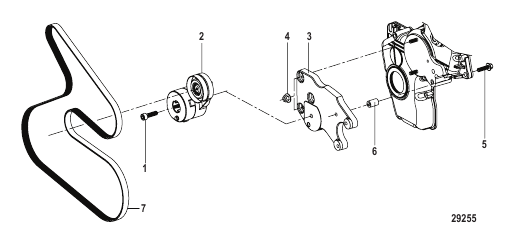

Front Dress

Front Dress

Parts (7)

#Part NumberDescriptionQtyStatus
1 898101522 БОЛТ (M12 x 70)
BOLT (M12 x 70) 		1
2 898101425 НАТЯЖНОЕ УСТРОЙСТВО
TENSIONER 		1 superseded
3 898101591 КРОНШТЕЙН
BRACKET 		1
4 898101542 ГАЙКА
NUT 		2
5 898101623 ВИНТ
SCREW 		1
6 896332056 ПРОСТАВКА
SPACER 		1
7 898101624 РЕМЕНЬ
BELT 		1 superseded
