| # | Part Number | Description | Qty | Status |
|---|
| - |

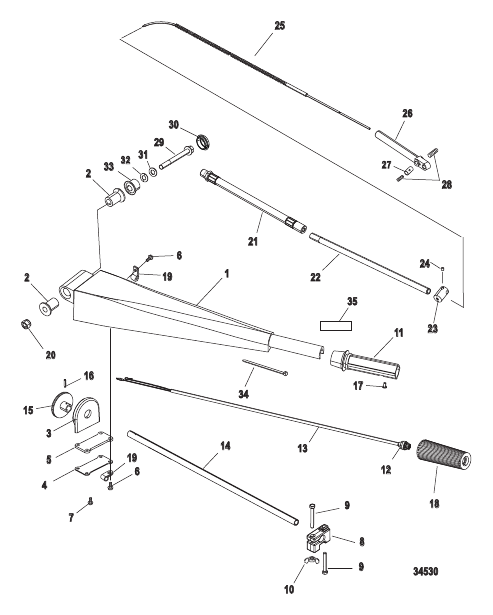

816366A52 |
HANDLE KIT Steering
|
1 |
disc.
|
| 1 |
12020A3 |
HANDLE ASSEMBLY Steering Arm
|
1 |
|
| 10 |
816874 |
WING NUT (#10-32)
|
1 |
|
| 11 |
823609A15 |
SWITCH KIT Stop - Throttle Handle
|
1 |
|
| 12 |
823609A5 |
SWITCH ASSEMBLY Stop
|
1 |
superseded
|
| 13 |
NSS |
NOT SOLD SEPARATE Insulator
|
1 |
|
| 14 |
12018A4 |
TUBE ASSEMBLY Throttle
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Drive Wheel
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE Roll Pin
|
1 |
|
| 17 |
62568 |
SCREW (#10-16 x .375)
|
1 |
|
| 18 |
99589003 |
GRIP
|
1 |
superseded
|
| 19 |
648552 |
CLIP
|
2 |
|
| 2 |
429922 |
BUSHING
|
2 |
superseded
|
| 20 |
40140 |
NUT (M10)
|
1 |
|
| 21 |
8885241 |
CONDUIT (9.03 Inches)
|
1 |
|
| 22 |
89566T07 |
GUIDE Tube
|
1 |
|
| 23 |
89578 |
BARREL Throttle Acutator
|
1 |
|
| 24 |
824081 |
SET SCREW (#10-32)
|
1 |
|
| 25 |
12019T05 |
CABLE ASSEMBLY
|
1 |
|
| 26 |
43433 |
GUIDE Cable
|
1 |
superseded
|
| 27 |
20007 |
ANCHOR Cable End
|
1 |
|
| 28 |
20518 |
SET SCREW (#8-32)
|
2 |
superseded
|
| 29 |
823567105 |
SCREW (M10 x 105) Hex Flange - Stainless Steel
|
1 |
|
| 3 |
48414 |
HOUSING
|
1 |
|
| 30 |
48416 |
CAP
|
1 |
|
| 31 |
4002319 |
WASHER
|
1 |
|
| 32 |
12024 |
WASHER (.402 x .787 x .039 Bellevi)
|
1 |
|
| 33 |
146011 |
SPACER
|
1 |
|
| 34 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 35 |
NSS |
NOT SOLD SEPARATE Decal-Throttle
|
1 |
|
| 4 |
48519 |
PLATE
|
1 |
|
| 5 |
48518 |
GASKET
|
1 |
|
| 6 |
878609 |
SCREW (#10-16 x .600)
|
2 |
|
| 7 |
878608 |
SCREW (#10-16 x .500)
|
3 |
|
| 8 |
889729 |
CLAMP
|
1 |
|
| 9 |
40007112 |
SCREW (M5 x 40)
|
2 |
|
| NS |
74036 |
FITTING Grease
|
1 |
superseded
|
