| # | Part Number | Description | Qty | Status |
|---|
| 1 |
858576T04 |

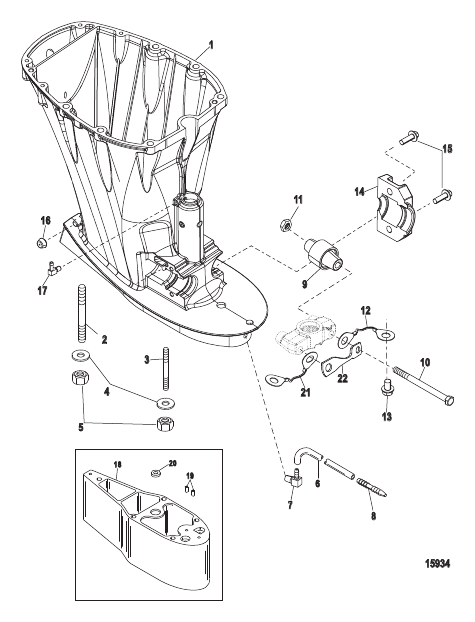

HOUSING Driveshaft
|
1 |
superseded
|
| 10 |
897925 |
SCREW (M12 x 145)
|
2 |
disc.
|
| 11 |
897926 |
NUT (M12), Nylon Insert
|
2 |
|
| 12 |
88238A10 |
CABLE ASSEMBLY Ground To Swivel Bracket
|
1 |
|
| 13 |
41508 |
SCREW (.250-20 x .500) Stainless Steel
|
1 |
|
| 14 |
858916T |
CLAMP
|
2 |
|
| 15 |
889833025 |
SCREW (M8 x 25 MM)
|
4 |
|
| 16 |
858745 |
CAP
|
4 |
superseded
|
| 17 |
855622 |
FITTING Elbow
|
1 |
|
| 18 |
12092A3 |
SPACER KIT X-Long
|
1 |
|
| 19 |
43043 |
PIN Dowel - With Hole (.375 x .625) X-Long
|
1 |
superseded
|
| 19 |
43044 |
PIN Dowel - Without Hole (.375 x .625) X-Long
|
1 |
|
| 2 |
903501 |
STUD (M10 x 100) Long
|
1 |
|
| 2 |
9035015 |
STUD (M10 x 227) X-Long
|
1 |
|
| 20 |
813745 |
SPACER X-Long
|
1 |
|
| 21 |
88238T22 |
CABLE ASSEMBLY
|
1 |
|
| 22 |
8M0009134 |
STRAP Continuity, Lower Yoke
|
1 |
disc.
|
| 3 |
9035012 |
STUD (M10 x 63) Long
|
4 |
|
| 3 |
9035016 |
STUD (M10 x 190) X-Long
|
4 |
superseded
|
| 4 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
5 |
superseded
|
| 5 |
40140 |
NUT (M10)
|
5 |
|
| 6 |
85822A15 |
PICKUP ASSEMBLY Speedometer
|
1 |
|
| 7 |
433351 |
CONNECTOR 90 Degree - With Vibraseal
|
1 |
|
| 8 |
85822 |
CONNECTOR Straight
|
1 |
superseded
|
| 9 |
898801 |
MOUNT
|
2 |
|
