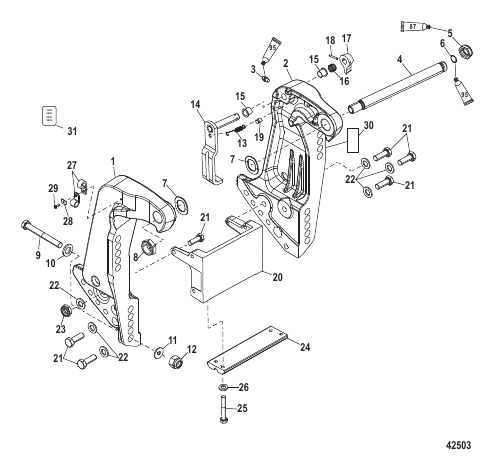

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
828334T02 |
BRACKET ASSEMBLY Transom - Starboard
|
1 |
disc.
|
| 10 |
54012 |
WASHER (.530 x .870 x .105) Stainless Steel
|
4 |
superseded
|
| 11 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 12 |
82671117 |
NUT (.500-20)
|
4 |
|
| 13 |
830899 |
SPRING Tension
|
1 |
|
| 14 |
821176T02 |
LEVER ASSEMBLY Tilt Lock
|
1 |
superseded
|
| 15 |
65830 |
NYLINER
|
2 |
|
| 16 |
830900 |
SPRING Compression
|
1 |
|
| 17 |
99633 |
KNOB
|
1 |
|
| 18 |
99615 |
PIN Groove
|
1 |
|
| 19 |
99617 |
PIN Included with Port Transom Bracket
|
1 |
superseded
|
| 2 |
828333T07 |
BRACKET ASSEMBLY Transom - Port
|
1 |
disc.
|
| 20 |
818771T1 |
BRACKET Anchor
|
1 |
superseded
|
| 21 |
858771 |
SCREW (M10 x 30)
|
6 |
|
| 22 |
4002319 |
WASHER
|
6 |
|
| 23 |
40114 |
NUT (M10 x 1.5)
|
1 |
|
| 24 |
8182981 |
ANODE
|
1 |
superseded
|
| 25 |
4000330 |
SCREW (M6 x 25)
|
2 |
superseded
|
| 26 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 27 |
22740 |
CLIP
|
2 |
|
| 28 |
69205 |
C WASHER
|
1 |
superseded
|
| 29 |
878609 |
SCREW (#10-16 x .600)
|
1 |
|
| 3 |
98727 |
FITTING Grease Port
|
1 |
superseded
|
| 30 |
NSS |
NOT SOLD SEPARATE Decal-Serial Overlaminate
|
1 |
|
| 31 |
8M0043059 |
DECAL Warning
|
1 |
|
| 4 |
826125A1 |
TILT TUBE
|
1 |
|
| 5 |
826135 |
NUT Lock (1.00-14) Nylon Insert
|
1 |
|
| 6 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 7 |
88750 |
WASHER Wave (1.62 x 1.05) Wave
|
2 |
|
| 8 |
826164 |
NUT (.875-14)
|
1 |
superseded
|
| 9 |
677551 |
SCREW (.500-20 x 4.500)
|
4 |
superseded
|
