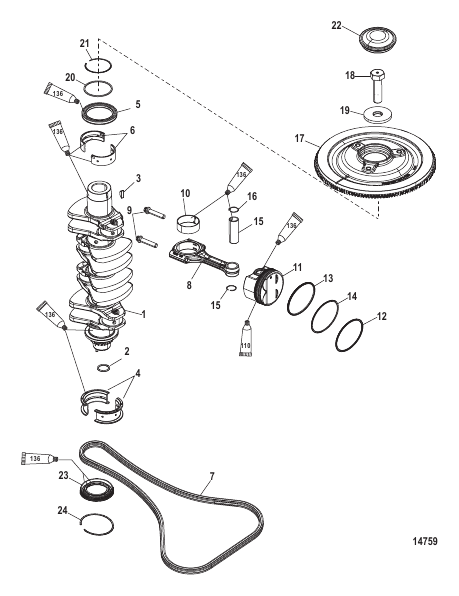

| # | Part Number | Description | Qty | Status |
|---|
| - |
897534A07 |
GASKET SET Powerhead
|
1 |
|
| - |
897148A09 |
LONG BLOCK ASSEMBLY 75/80/90/100
|
1 |
superseded
|
| - |
897148A08 |
LONG BLOCK ASSEMBLY 115
|
1 |
|
| 1 |
898051A04 |
CRANKSHAFT ASSEMBLY
|
1 |
superseded
|
| 10 |
892005A01 |
BEARING Connecting Rod - Blue
|
4 |
|
| 10 |
892005A02 |
BEARING Connecting Rod - White
|
4 |
|
| 10 |
892005A03 |
BEARING Connecting Rod - Orange
|
4 |
|
| 11 |
898472T01 |
PISTON ASSEMBLY (Standard)
|
4 |
|
| 12 |
881180A03 |
RING SET Piston (Standard)
|
4 |
superseded
|
| 13 |
NSS |
NOT SOLD SEPARATE Oil Ring
|
4 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Piston Ring-Second
|
4 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Piston Pin
|
4 |
|
| 16 |
881184 |
CIRCLIP
|
8 |
|
| 17 |
897522T04 |
FLYWHEEL ASSEMBLY
|
1 |
|
| 18 |
880515 |
BOLT (M20 x 68)
|
1 |
superseded
|
| 19 |
8M0062178 |
WASHER 66 X 21 X 6.35 MM
|
1 |
superseded
|
| 2 |
889993001 |
O-ring
|
1 |
|
| 20 |
896883 |
SPACER
|
1 |
|
| 21 |
896882 |
RING Retaining
|
1 |
|
| 22 |
885348 |
CAP
|
1 |
|
| 23 |
897540 |
SEAL Oil
|
1 |
|
| 24 |
897785 |
RING Retaining
|
1 |
|
| 3 |
91800 |
KEY Woodruff
|
1 |
|
| 4 |
892309T01 |
BEARING Thrust - Green Crankshaft-Lower
|
2/AR |
superseded
|
| 4 |
892309T02 |
BEARING Thrust - Navy Blue Crankshaft-Lower
|
2/AR |
disc.
|
| 4 |
892309T03 |
BEARING Thrust - White Crankshaft-Lower
|
2/AR |
disc.
|
| 4 |
892309T04 |
BEARING Thrust - Orange Crankshaft-Lower
|
2/AR |
superseded
|
| 5 |
8805251 |
SEAL Top Main Bearing
|
1 |
superseded
|
| 6 |
897498T01 |
BEARING Main - Green Crankshaft-Upper
|
4 |
|
| 6 |
897498T02 |
BEARING Main - Navy Blue Crankshaft-Upper
|
4 |
|
| 6 |
897498T03 |
BEARING Main - White Crankshaft-Upper
|
4 |
|
| 6 |
897498T04 |
BEARING Main - Orange Crankshaft-Upper
|
4 |
|
| 7 |
897796 |
CHAIN Roller Cam Drive
|
1 |
superseded
|
| 8 |
881210T02 |
CONNECTING ROD ASSEMBLY
|
4 |
superseded
|
| 9 |
884441 |
BOLT
|
8 |
|
