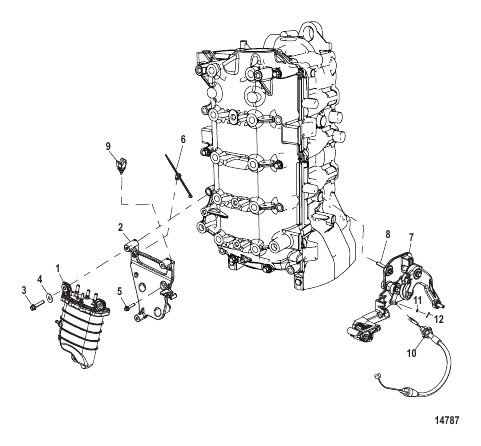

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
880133T08 |
MODULE Fuel Supply See Fuel Supply Module Page For Service Parts Breakdown
|
1 |
superseded
|
| 10 |
8M0005986 |
CABLE ASSEMBLY
|
1 |
|
| 11 |
35459 |
WASHER
|
1 |
|
| 12 |
210711 |
COTTER PIN
|
1 |
|
| 2 |
897567T |
BRACKET Fuel Supply Module
|
1 |
|
| 3 |
88552635 |
SCREW (M8 x 35 MM)
|
3 |
superseded
|
| 4 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
3 |
|
| 5 |
88552635 |
SCREW (M8 x 35 MM)
|
3 |
superseded
|
| 6 |
899145 |
CLIP Tie Strap
|
2 |
|
| 7 |
897763T01 |
BRACKET ASSEMBLY Throttle [1B418905] & Below
|
1 |
superseded
|
| 7 |
897763T01 |
BRACKET ASSEMBLY Throttle [0P472784] & Below
|
1 |
superseded
|
| 7 |
897763T03 |
BRACKET ASSEMBLY Throttle [1B418906] & Up
|
1 |
|
| 7 |
897763T03 |
BRACKET ASSEMBLY Throttle [0P472785] & Up
|
1 |
|
| 8 |
88552620 |
SCREW (M8 x 20)
|
3 |
|
| 9 |
897559 |
CLIP
|
1 |
|
