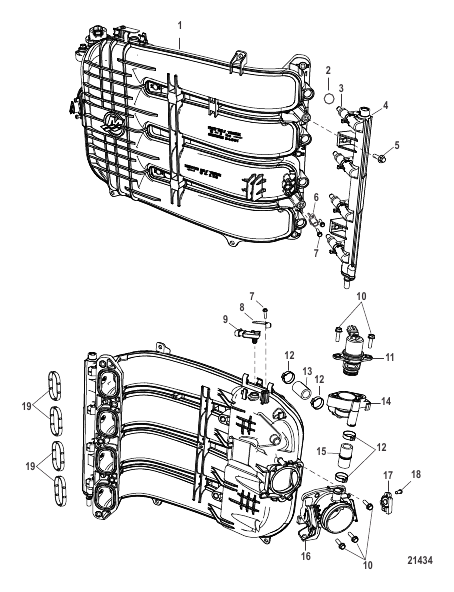

| # | Part Number | Description | Qty | Status |
|---|
| - |
892952T04 |
IAFM ASSEMBLY [1B587015] & Below
|
1 |
superseded
|
| - |
892952T06 |
IAFM ASSEMBLY [1B587016] & Up
|
1 |
disc.
|
| 1 |
8M6002790 |
MANIFOLD Intake
|
1 |
disc.
|
| 10 |
897445501 |
SCREW (M6 x 20 MM)
|
5 |
|
| 11 |
897526T |
IAC VALVE
|
1 |
superseded
|
| 12 |
8M0005933 |
CLAMP
|
4 |
superseded
|
| 13 |
8M0005528 |
HOSE Idle Air Discharge
|
1 |
|
| 14 |
8M0005529 |
HOUSING Manifold
|
1 |
|
| 15 |
8M0005527 |
HOSE Idle Air Feed
|
1 |
|
| 16 |
898103T98 |
THROTTLE BODY ASSEMBLY
|
1 |
|
| 17 |
881070T |
SENSOR Position
|
1 |
superseded
|
| 18 |
8M0009542 |
SCREW KIT (M5 x 17) Contains 2 Screws
|
1 |
|
| 19 |
897445505 |
SEAL Bulk Pack of 4 seals.
|
1 |
|
| 2 |
851889 |
O-RING
|
8 |
|
| 3 |
8M0006027 |
INJECTOR Fuel
|
4 |
superseded
|
| 4 |
898103T97 |
FUEL RAIL ASSEMBLY
|
1 |
|
| 5 |
897445502 |
SCREW (M6 x 20)
|
2 |
|
| 6 |
891663001 |
SENSOR Temperature
|
1 |
|
| 7 |
895054 |
SCREW (M4 x 16 MM)
|
3 |
|
| 8 |
897445503 |
BRACKET Retaining
|
1 |
|
| 9 |
854445 |
SENSOR MAP
|
1 |
|
