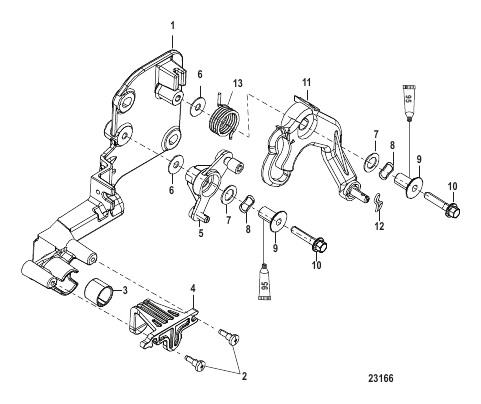

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
897763T01 |
BRACKET ASSEMBLY Throttle [1B418905] & Below
|
1 |
superseded
|
| 1 |
897763T01 |
BRACKET ASSEMBLY Throttle [0P472784] & Below
|
1 |
superseded
|
| 1 |
897763T03 |
BRACKET ASSEMBLY Throttle [1B418906] & Up
|
1 |
|
| 1 |
897763T03 |
BRACKET ASSEMBLY Throttle [0P472785] & Up
|
1 |
|
| 10 |
88552530 |
SCREW (M6 x 30 MM) Stainless Steel
|
2 |
superseded
|
| 11 |
8M0008288 |
LEVER ASSEMBLY Throttle
|
1 |
|
| 12 |
8M0001157 |
PIN Bow Tie Clip
|
1 |
|
| 13 |
897535005 |
SPRING Throttle Cam Return
|
1 |
|
| 2 |
42975 |
DRIVE SCREW
|
2 |
|
| 3 |
824015 |
CUP Barrel Retainer
|
1 |
|
| 4 |
898048T |
LATCH Control Cable
|
1 |
|
| 5 |
897765T01 |
LEVER ASSEMBLY Throttle Follower
|
1 |
|
| 6 |
897936 |
WASHER
|
2 |
|
| 7 |
897937 |
WASHER
|
2 |
|
| 8 |
898093 |
WASHER Wave
|
2 |
|
| 9 |
897935 |
SPACER
|
2 |
disc.
|
