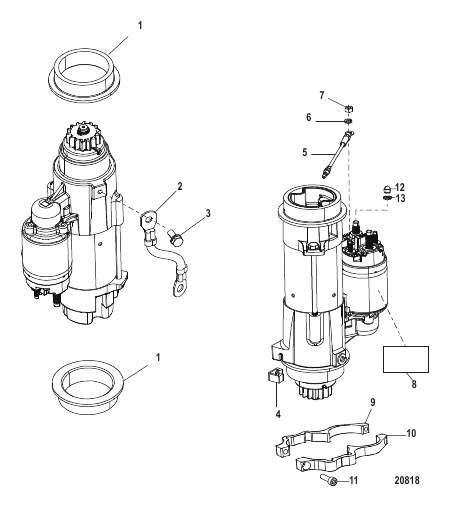

| # | Part Number | Description | Qty | Status |
|---|
| - |
897525T03 |
STARTER MOTOR ASSEMBLY [1B580803] & Below
|
1 |
superseded
|
| - |
897525T05 |
STARTER MOTOR ASSEMBLY Complete [1B580804] THRU [1B759587]
|
1 |
disc.
|
| 1 |
8M0001391 |
COLLAR Starter Motor
|
2 |
superseded
|
| 10 |
898103T95 |
CLAMP
|
1 |
disc.
|
| 11 |
8M0008081 |
SCREW (M6 x 20)
|
2 |
|
| 12 |
8M0008110 |
NUT Acorn
|
1 |
|
| 13 |
8M0008112 |
WASHER (8 mm Outside Diameter x 187 mm)
|
2 |
disc.
|
| 2 |
93388A1 |
CABLE ASSEMBLY (6.00 Inches) Black
|
1 |
|
| 3 |
69035 |
SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel
|
1 |
|
| 4 |
8M0007871 |
STOP Rubber
|
1 |
|
| 5 |
898890T01 |
CABLE ASSEMBLY
|
1 |
|
| 6 |
400255 |
LOCKWASHER (M5)
|
1 |
|
| 7 |
400211 |
NUT (M5) Stainless Steel
|
1 |
|
| 8 |
8272822 |
DECAL Warning
|
1 |
|
| 9 |
898103T94 |
CLAMP
|
1 |
disc.
|
