| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |

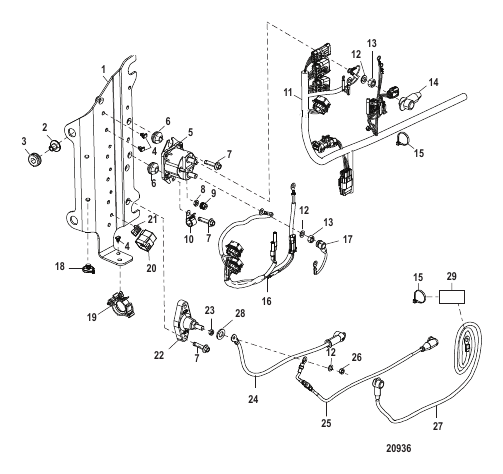

NOT SOLD SEPARATE Electrical Plate Assembly-Complete
|
1 |
|
| - |
83296915 |
FUSE Mini - Blue - 15 Ampere
|
1 |
superseded
|
| - |
8329692 |
FUSE Mini - Gray - 2 Ampere
|
1 |
superseded
|
| - |
83296920 |
FUSE Mini - Yellow - 20 Ampere
|
4 |
superseded
|
| - |
8329695 |
FUSE Mini - Tan - 5 Ampere
|
1 |
superseded
|
| - |
858754 |
COVER Fuse
|
2 |
|
| 1 |
897619T01 |
PLATE Electrical
|
1 |
|
| 10 |
859172 |
CLAMP
|
1 |
|
| 11 |
892579T13 |
HARNESS ASSEMBLY Engine
|
1 |
|
| 12 |
26993 |
LOCKWASHER (.312)
|
3 |
superseded
|
| 13 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 14 |
880787 |
BOOT Insulator - Yellow
|
1 |
|
| 15 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 15 |
69355 |
TIE STRAP (5.50 Inches)
|
AR |
superseded
|
| 16 |
819514T24 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 17 |
93388T21 |
CABLE ASSEMBLY Black
|
1 |
|
| 18 |
899145 |
CLIP Tie Strap
|
2 |
|
| 19 |
898454 |
CLIP (19 mm)
|
1 |
|
| 2 |
856954 |
BUSHING
|
2 |
|
| 20 |
882751 |
RELAY
|
3 |
superseded
|
| 21 |
865205 |
CLIP
|
3 |
|
| 22 |
875302A1 |
HOT STUD ASSEMBLY
|
1 |
|
| 23 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
| 24 |
93388T20 |
CABLE ASSEMBLY Black
|
1 |
|
| 25 |
878231T05 |
HARNESS ASSEMBLY Fuse
|
1 |
|
| 26 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
| 27 |
88439A46 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 28 |
85172 |
WASHER
|
1 |
|
| 29 |
NSS |
NOT SOLD SEPARATE Tag-Battery
|
1 |
|
| 3 |
834985 |
GROMMET
|
2 |
superseded
|
| 4 |
879962 |
CLIP
|
4 |
|
| 5 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 6 |
822179 |
GROMMET
|
2 |
|
| 7 |
82129125 |
SCREW (M6 x 25 MM)
|
4 |
|
| 8 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 9 |
813938 |
CAP NUT (#10-32)
|
2 |
|
