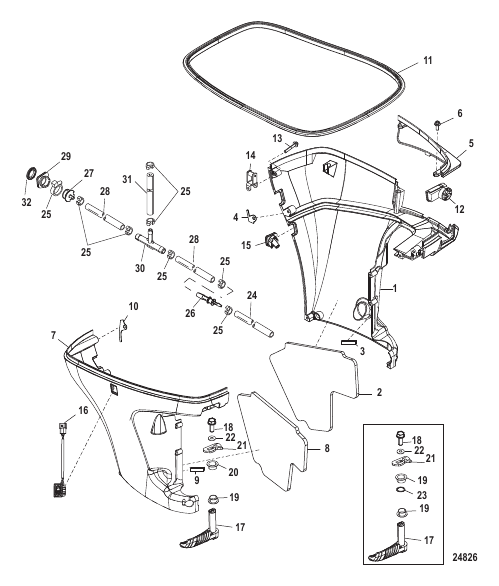

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
878587A02 |
BOTTOM COWL ASSEMBLY Port
|
1 |
disc.
|
| 10 |
8M0000540 |
GASKET Foam Included in bottom cowls.
|
1 |
|
| 11 |
8M0000413 |
SEAL Cowl (41.00 Inches)
|
1 |
superseded
|
| 12 |
889724 |
GROMMET
|
1 |
|
| 13 |
82130040 |
SCREW (M6 x 40)
|
8 |
|
| 14 |
831209 |
RETAINER
|
1 |
|
| 15 |
898805 |
BOOT Idle Exhaust
|
1 |
|
| 16 |
896620001 |
SWITCH Trim
|
1 |
superseded
|
| 17 |
889740A02 |
HANDLE KIT
|
1 |
|
| 18 |
88552516 |
SCREW (M6 x 16 MM) Stainless Steel
|
1 |
superseded
|
| 19 |
33589 |
BUSHING White/Upper and Lower - Design I
|
2 |
disc.
|
| 19 |
33589 |
BUSHING White/Lower - Design II
|
1 |
disc.
|
| 2 |
898490 |
SOUND BLANKET Port
|
1 |
|
| 20 |
8M0001595 |
BUSHING Black Upper - Design II
|
1 |
|
| 21 |
8219423 |
PAWL
|
1 |
|
| 22 |
69057 |
WASHER (.281 x .734 x .063)
|
1 |
|
| 23 |
NSS |
NOT SOLD SEPARATE O-Ring Order 8M0001595 - Design I
|
1 |
|
| 24 |
9912688 |
TUBING (36.00 Inches Bulk)
|
1 |
|
| 25 |
816311T |
TIE STRAP (8.00 Inches)
|
8 |
|
| 26 |
898029 |
FITTING Reducer
|
1 |
disc.
|
| 27 |
827948 |
FITTING
|
1 |
|
| 28 |
8M0047428 |
HOSE (.25 inch ID, 57.00 Inches Bulk)
|
2 |
superseded
|
| 29 |
8M0039078 |
GROMMET
|
1 |
|
| 3 |
828706 |
BUMPER
|
1 |
superseded
|
| 30 |
817518 |
TEE
|
1 |
disc.
|
| 31 |
881535 |
HOSE (32.00 Inches)
|
1 |
disc.
|
| 32 |
855576 |
WASHER
|
1 |
disc.
|
| 4 |
8M0001077 |
GASKET Foam Included in bottom cowls.
|
1 |
|
| 5 |
897658T |
INSERT
|
1 |
|
| 6 |
892073002 |
SHOULDER SCREW (M6)
|
2 |
superseded
|
| 7 |
858743A04 |
BOTTOM COWL ASSEMBLY Starboard
|
1 |
superseded
|
| 8 |
898491 |
SOUND BLANKET Starboard
|
1 |
|
| 9 |
828706 |
BUMPER
|
1 |
superseded
|
