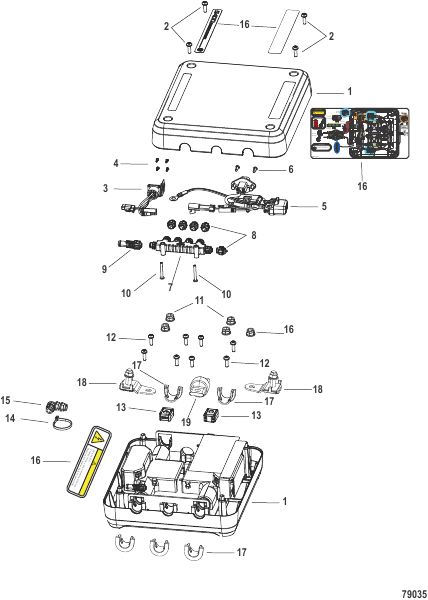

Power Center Components 5400 Wh, 75e and 110e Models
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0219905 |
POWER CENTER 5400 POWER CENTER 5400 |
1 | |
| 10 | 66687 |
ВИНТ (№10-32 x 1.50) SCREW (#10-32 x 1.50) |
2 | |
| 11 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
8 | |
| 12 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
8 | |
| 13 | 8M0224242 |
FUSE ZCase, M10 70 amp FUSE ZCase, M10 70 amp |
2 | |
| 14 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 15 | 826365 |
ГАЙКА (M8) NUT (M8) |
2 | |
| 16 | 8M0230987 |
BUSHING Bracket BUSHING Bracket |
5 | |
| 17 | 8M0230990 |
HOLDER Fuse Z Case HOLDER Fuse Z Case |
2 | |
| 18 | 8M0230989 |
FUSE Class T 125V FUSE Class T 125V |
1 | |
| 19 | 8M0224193 |
DECAL SET 5400 Wh Power Center Set contains Decal, Caution, Decal 75e/110e, Decal 5400 Power Center DECAL SET 5400 Wh Power Center Set contains Decal, Caution, Decal 75e/110e, Decal 5400 Power Center |
1 | |
| 2 | 8M0080651 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 3 | 8M0219927 |
HARNESS ASSEMBLY Charger HARNESS ASSEMBLY Charger |
1 | |
| 4 | 8M0221252 |
SCREW M3 x 10 FLT HD SCREW M3 x 10 FLT HD |
4 | |
| 5 | 8M0221253 |
HARNESS Fuse HARNESS Fuse |
1 | |
| 6 | 95700 |
ВИНТ (№10-16 x 0.50) SCREW (#10-16 x .50) |
2 | |
| 7 | 8M0210401 |
T-JUNCTION BOX T-JUNCTION BOX |
1 | |
| 8 | 8M0210412 |
WEATHERCAP Female WEATHERCAP Female |
5 | |
| 8 | 8M0210413 |
WEATHERCAP Male WEATHERCAP Male |
AR | |
| 9 | 8M0210400 |
TERMINATOR 6 POS XLOK CAP TERMINATOR 6 POS XLOK CAP |
1 |
