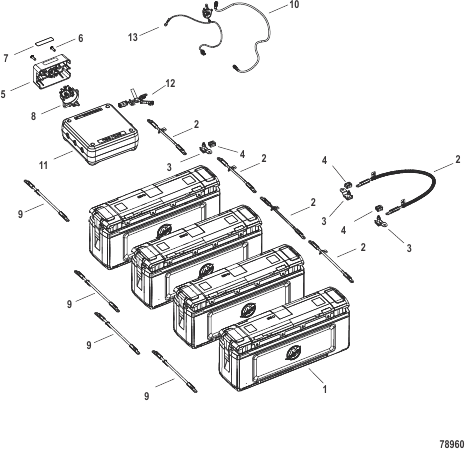

Battery and Power Components 5400 Wh 75e/110e Models
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M6012728 |
BATTERY CHARGER 520W for 5400 Wh BATTERY CHARGER 520W for 5400 Wh |
1 | |
| - | 8M6013542 |
BATTERY CHARGER 1050W for 5400 Wh BATTERY CHARGER 1050W for 5400 Wh |
1 | |
| - | 8M0221527 |
PLUG ADAPTER US/AU 520W PLUG ADAPTER US/AU 520W |
1 | |
| - | 8M0224243 |
FUSE KIT Split Bank 2 required for splitting FUSE KIT Split Bank 2 required for splitting |
1/2 | |
| 1 | 8M6011591 |
BATTERY 5400 Wh BATTERY 5400 Wh |
AR | |
| 10 | 8M0210404 |
HARNESS Signal Extension .5M Battery CAN HARNESS Signal Extension .5M Battery CAN |
AR | |
| 10 | 8M0210405 |
HARNESS Signal Extension 1M Battery CAN HARNESS Signal Extension 1M Battery CAN |
AR | |
| 10 | 8M0210406 |
HARNESS Signal Extension 2M Battery CAN HARNESS Signal Extension 2M Battery CAN |
AR | |
| 10 | 8M0210407 |
HARNESS Signal Extension 3M Battery CAN HARNESS Signal Extension 3M Battery CAN |
AR | |
| 10 | 8M0210408 |
HARNESS Signal Extension 4M Battery CAN HARNESS Signal Extension 4M Battery CAN |
AR | |
| 10 | 8M0210409 |
HARNESS Signal Extension 5M Battery CAN HARNESS Signal Extension 5M Battery CAN |
AR | |
| 11 | 8M0219905 |
POWER CENTER 5400 POWER CENTER 5400 |
AR | |
| 12 | 8M0224537 |
HARNESS Breakout HARNESS Breakout |
AR | |
| 13 | 8M0218481 |
HARNESS Extension 1M Single Wire Fuse Harness HARNESS Extension 1M Single Wire Fuse Harness |
AR | |
| 13 | 8M0218482 |
HARNESS Extension 2M Single Wire Fuse Harness HARNESS Extension 2M Single Wire Fuse Harness |
AR | |
| 13 | 8M0218483 |
HARNESS Extension 3M Single Wire Fuse Harness HARNESS Extension 3M Single Wire Fuse Harness |
AR | |
| 13 | 8M0218484 |
HARNESS Extension 4M Single Wire Fuse Harness HARNESS Extension 4M Single Wire Fuse Harness |
AR | |
| 2 | 8M0223511 |
CABLE, POSITIVE 3 AWG, 10 Inches (.25m) Wrapped in corrugated tubing CABLE, POSITIVE 3 AWG, 10 Inches (.25m) Wrapped in corrugated tubing |
AR | |
| 2 | 8M0223512 |
CABLE, POSITIVE 3 AWG, 20 Inches (.5m) Wrapped in corrugated tubing CABLE, POSITIVE 3 AWG, 20 Inches (.5m) Wrapped in corrugated tubing |
AR | |
| 2 | 8M0223513 |
CABLE, POSITIVE 3 AWG, 30 Inches (.75m) Wrapped in corrugated tubing CABLE, POSITIVE 3 AWG, 30 Inches (.75m) Wrapped in corrugated tubing |
AR | |
| 2 | 8M0223514 |
CABLE, POSITIVE 3 AWG, 50 Inches (1.25m) Wrapped in corrugated tubing CABLE, POSITIVE 3 AWG, 50 Inches (1.25m) Wrapped in corrugated tubing |
AR | |
| 2 | 8M0223515 |
CABLE, POSITIVE 3 AWG, 70 Inches (1.75m) Wrapped in corrugated tubing CABLE, POSITIVE 3 AWG, 70 Inches (1.75m) Wrapped in corrugated tubing |
AR | |
| 2 | 8M0223516 |
CABLE, POSITIVE 3 AWG, 100 Inches (2.5m) CABLE, POSITIVE 3 AWG, 100 Inches (2.5m) |
AR | |
| 2 | 8M0223517 |
CABLE, POSITIVE 3 AWG, 118 Inches (3m) CABLE, POSITIVE 3 AWG, 118 Inches (3m) |
AR | |
| 2 | 8M0223518 |
CABLE, POSITIVE 3 AWG, 158 Inches (4m) CABLE, POSITIVE 3 AWG, 158 Inches (4m) |
AR | |
| 2 | 8M0223519 |
CABLE, POSITIVE 3 AWG, 196 Inches (5m) CABLE, POSITIVE 3 AWG, 196 Inches (5m) |
AR | |
| 2 | 8M0223520 |
CABLE, POSITIVE 3 AWG, 236 Inches (6m) CABLE, POSITIVE 3 AWG, 236 Inches (6m) |
AR | |
| 3 | 8M0224240 |
HOLDER ZCase Fuse Battery HOLDER ZCase Fuse Battery |
AR | |
| 4 | 8M0219929 |
FUSE ZCase, M10, 150amp FUSE ZCase, M10, 150amp |
AR | |
| 5 | 8M0227048 |
SWITCH MOUNTING HOUSING 500A SWITCH MOUNTING HOUSING 500A |
AR | |
| 6 | 8M0199924 |
SCREW M8 x 25 TRUSS HEAD SCREW M8 x 25 TRUSS HEAD |
2 | |
| 7 | 8M0224193 |
DECAL SET 5400 Wh Power Center Set includes Decal, Caution 50-60VDC DECAL SET 5400 Wh Power Center Set includes Decal, Caution 50-60VDC |
1 | |
| 8 | 8M0225381 |
SWITCH Battery, 500A SWITCH Battery, 500A |
1 | |
| 9 | 8M0223708 |
CABLE, NEGATIVE 3 AWG, 10 Inches (.25m) Wrapped in corrugated tubing CABLE, NEGATIVE 3 AWG, 10 Inches (.25m) Wrapped in corrugated tubing |
AR | |
| 9 | 8M0223709 |
CABLE, NEGATIVE 3 AWG, 20 Inches (.5m) Wrapped in corrugated tubing CABLE, NEGATIVE 3 AWG, 20 Inches (.5m) Wrapped in corrugated tubing |
AR | |
| 9 | 8M0223710 |
CABLE, NEGATIVE 3 AWG, 30 Inches (.75m) Wrapped in corrugated tubing CABLE, NEGATIVE 3 AWG, 30 Inches (.75m) Wrapped in corrugated tubing |
AR | |
| 9 | 8M0223711 |
CABLE, NEGATIVE 3 AWG, 50 Inches (1.25m) Wrapped in corrugated tubing CABLE, NEGATIVE 3 AWG, 50 Inches (1.25m) Wrapped in corrugated tubing |
AR | |
| 9 | 8M0223712 |
CABLE, NEGATIVE 3 AWG, 70 Inches (1.75m) Wrapped in corrugated tubing CABLE, NEGATIVE 3 AWG, 70 Inches (1.75m) Wrapped in corrugated tubing |
AR | |
| 9 | 8M0223713 |
CABLE, NEGATIVE 3 AWG, 100 Inches (2.5m) CABLE, NEGATIVE 3 AWG, 100 Inches (2.5m) |
AR | |
| 9 | 8M0223714 |
CABLE, NEGATIVE 3 AWG, 118 Inches (3m) CABLE, NEGATIVE 3 AWG, 118 Inches (3m) |
AR | |
| 9 | 8M0223715 |
CABLE, NEGATIVE 3 AWG, 158 Inches (4m) CABLE, NEGATIVE 3 AWG, 158 Inches (4m) |
AR | |
| 9 | 8M0223716 |
CABLE, NEGATIVE 3 AWG, 196 Inches (5m) CABLE, NEGATIVE 3 AWG, 196 Inches (5m) |
AR | |
| 9 | 8M0223717 |
CABLE, NEGATIVE 3 AWG, 236 Inches (6m) CABLE, NEGATIVE 3 AWG, 236 Inches (6m) |
AR |
