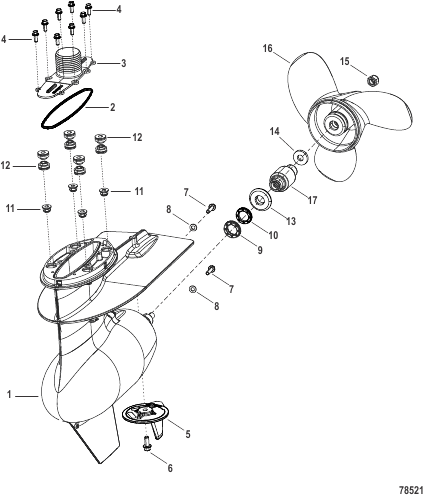

Motor Lower Unit
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0230336 |
MOTOR LOWER UNIT COMPLETE Short 75e Models MOTOR LOWER UNIT COMPLETE Short 75e Models |
1 | |
| 1 | 8M0230337 |
MOTOR LOWER UNIT COMPLETE Long MOTOR LOWER UNIT COMPLETE Long |
1 | |
| 1 | 8M0230338 |
MOTOR LOWER UNIT COMPLETE XLong MOTOR LOWER UNIT COMPLETE XLong |
1 | |
| 10 | 8M0224127 |
SEAL Oil SEAL Oil |
1 | |
| 11 | 8M0179913 |
NUT (M8) NUT (M8) |
4 | |
| 12 | 8M0224120 |
ISOLATOR Motor Lower Unit ISOLATOR Motor Lower Unit |
8 | |
| 13 | 8M0219450 |
PROPELLER HARDWARE KIT PROPELLER HARDWARE KIT |
1 | |
| 14 | 885511003 |
ШАЙБА WASHER |
1 | |
| 15 | 8M0227902 |
NUT (M12 x 1.75) Lock Brass NUT (M12 x 1.75) Lock Brass |
1 | |
| 16 | 8M0217210 |
PROPELLER 8P AL 3B Avator PROPELLER 8P AL 3B Avator |
AR | |
| 16 | 8M0217211 |
PROPELLER 9P AL 3B Avator Recommended PROPELLER 9P AL 3B Avator Recommended |
AR | |
| 16 | 8M0217212 |
PROPELLER 10.5P AL 3B Avator PROPELLER 10.5P AL 3B Avator |
AR | |
| 17 | 897001T |
ВТУЛКА Резина HUB Rubber |
AR | |
| 2 | 8M0224122 |
SEAL Plate SEAL Plate |
1 | |
| 3 | 8M0224121 |
PLATE Seal PLATE Seal |
1 | |
| 4 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
8 | |
| 5 | 822157T2 |
ТРАНЦЕВАЯ ПЛИТА TRIM TAB |
1 | |
| 6 | 88552620 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 7 | 8M0103814 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
2 | |
| 8 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) WASHER (8.90 X 17.0 X 1.9SS) |
2 | |
| 9 | 8M0224126 |
SEAL Oil SEAL Oil |
1 |
